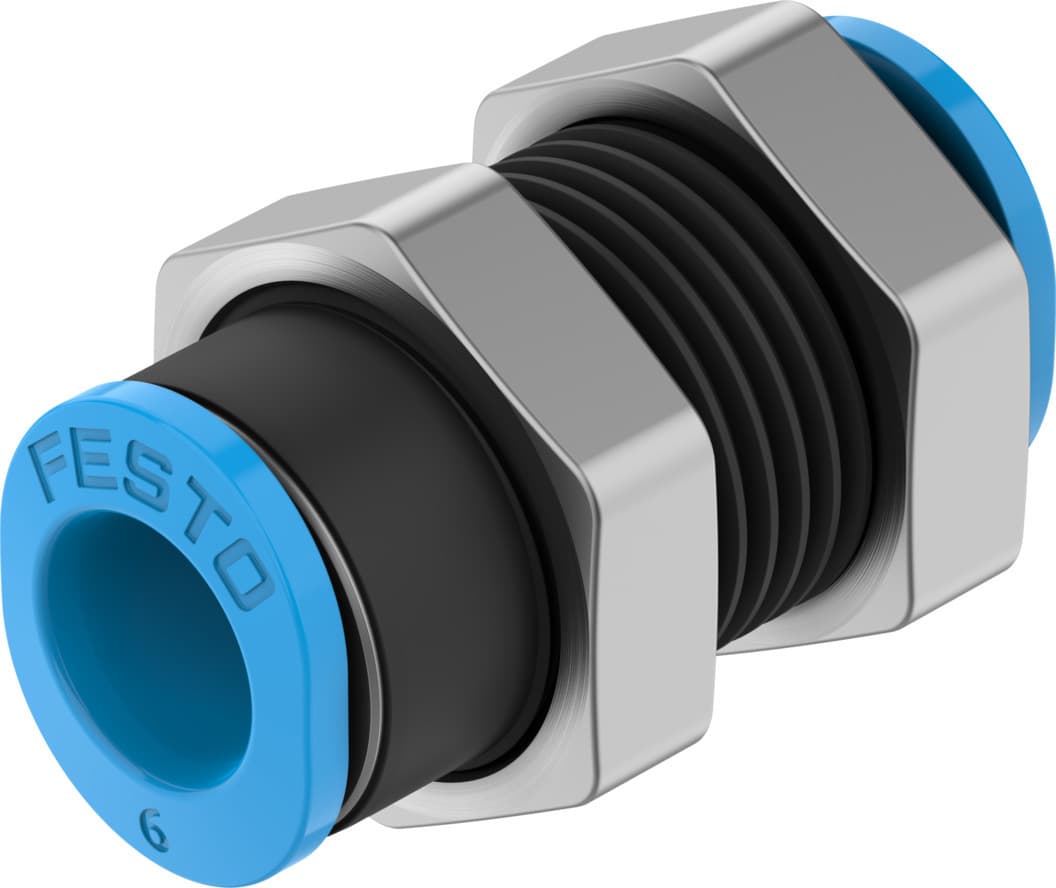

qsms-6-100
Product ID:1059
Updated: 2026/7/4
Key Features
- 1Install the Festo QSMS-6-100 push-in bulkhead connector for high-pressure pneumatic applications.
- 2Utilize the push-pull principle for quick and easy setup.
- 3Ensure reliable performance across a wide temperature range.
- 4Meet high standards with CRC 1 corrosion resistance and LABS conformity.
- 5Order in packs of 100 for flexible and cost-effective solutions.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 3.7mm |
| Mounting position | Any | Design | Bulkhead |
| Pack size | 100 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Product weight | 9g |
| Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Aluminum, anodized | Releasing ring material | POM |
| Nut material | Brass, nickel-plated | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130781 |
Specifications may be subject to change without notice
