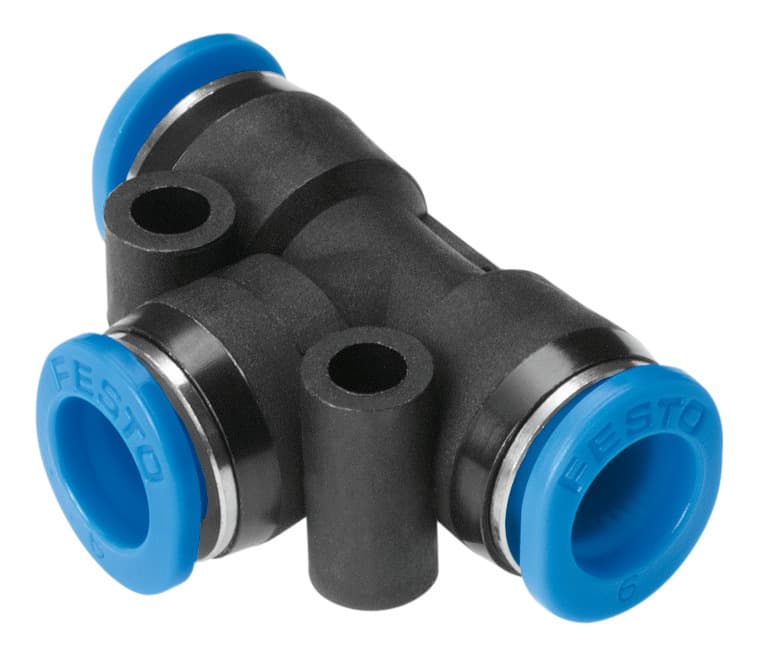

qsmt-2
Product ID:1303
Updated: 2026/7/5
Key Features
- 1Ensure secure pneumatic connections with the reliable QSMT-2 T-connector.
- 2Fit into tight spaces using the compact 0.9 mm nominal size.
- 3Prevent leaks and ensure durability with the integrated sealing ring.
- 4Handle versatile applications within a -0.95 to 6 bar pressure range.
- 5Resist corrosion in harsh environments with the CRC 1 classification.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 0.9mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | T-shape | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Product weight | 1.6g | Pneumatic connection 1 | for pneumatic tubing outside diameter 2 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 2 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 133034 |
Specifications may be subject to change without notice
