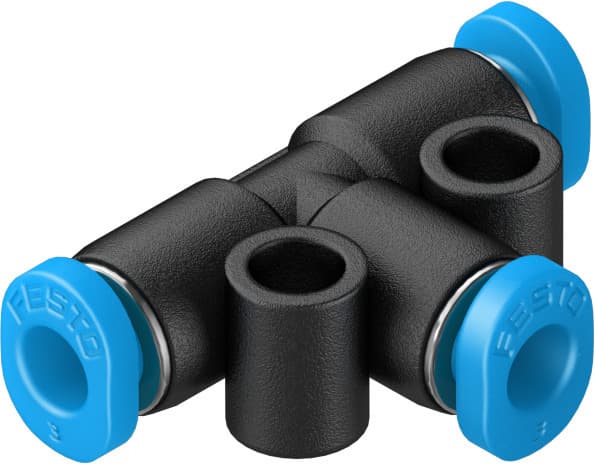

qsmt-3
Product ID:2702
Updated: 2026/4/4
Key Features
- 1Connect 3 mm pneumatic tubing securely with the compact Festo QSMT-3 T-connector. 2、Operate reliably across a wide temperature range from -10 °C to 80 °C. 3、Minimize leakage risk with a precise 1.6 mm nominal width design. 4、Ensure performance in moderate corrosion environments with CRC 1 rating. 5、Simplify installation using the push-pull principle and blue release ring.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.6mm |
| Mounting position | Any | Design | T-shape |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Product weight | 1.7g |
| No. of outlets | 2 | No. of supply lines | 1 |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 3 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 3 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153365 |
Specifications may be subject to change without notice
