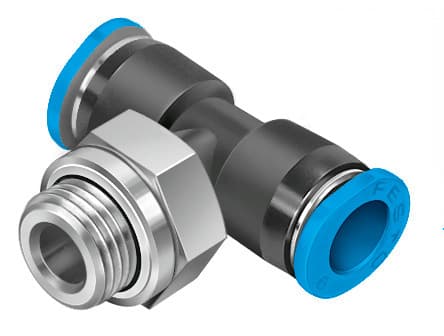

qsmt-g1/8-6
Product ID:6040
Updated: 2026/4/3
Key Features
- 1Ensure secure pneumatic connections in mini applications with a 3.3 mm nominal width. 2、Orient the fitting 360° for flexible installation in any position. 3、Support operating pressures up to 6 bar for versatile application use. 4、Withstand low corrosion stress (CRC 1) for enhanced durability and longevity. 5、Install and maintain easily using the push/pull principle and sealing ring.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 3.3mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | T-shape | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 12g | No. of outlets | 2 |
| No. of supply lines | 1 | Type of mounting | External hexagon, AF 13 |
| Pneumatic connection 1 | External thread G1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186273 |
Specifications may be subject to change without notice
