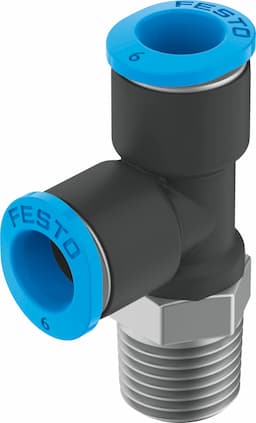

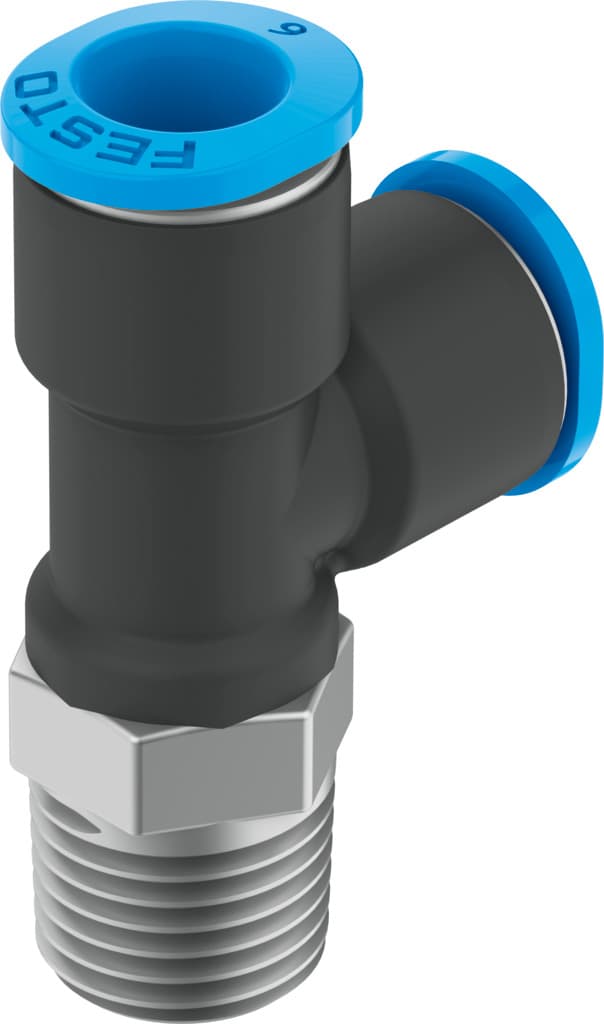

qsmtl-1/8-6
Product ID:2701
Updated: 2026/4/4
Key Features
- 1Minimize space usage with a 3.3 mm nominal width for constrained applications. 2、Ensure reliable performance across a wide pressure range from -0.095 to 0.6 MPa. 3、Gain installation flexibility with optional mounting positions and an L-shape design. 4、Withstand harsh conditions using a component with corrosion resistance class (CRC) 1. 5、Simplify installation via the push-pull principle and a 7 Nm ±20% tightening torque.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 3.3mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | L-shape, additional push-in connector, lengthwise | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 8.5g | No. of outlets | 2 |
| No. of supply lines | 1 | Type of mounting | External hexagon, AF 10 |
| Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153364 |
Specifications may be subject to change without notice
