qsmtl-m5-4
Product ID:2698
Updated: 2026/7/6
Key Features

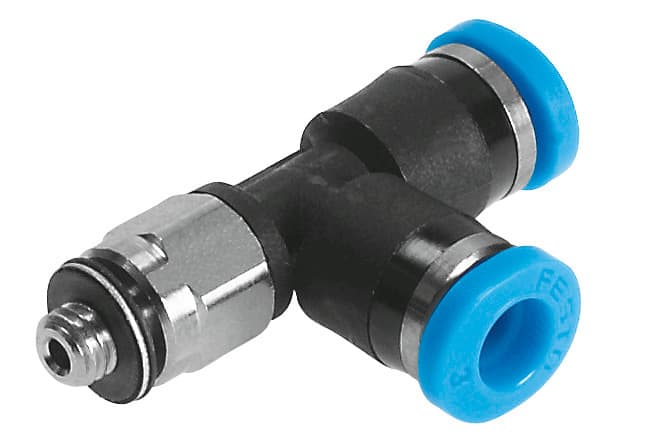

- 1Maximize space in panels with this compact Festo QSMTL-M5-4 T-fitting.
- 2Ensure leak-free connections using the integrated sealing ring.
- 3Position the fitting flexibly to suit your specific layout needs.
- 4Connect tubing quickly with the push-in design for faster installation.
- 5Operate reliably from -10°C to 80°C in diverse environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.6mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | L-shape, additional push-in connector, lengthwise | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 1.2Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 4.4g | No. of outlets | 2 |
| No. of supply lines | 1 | Type of mounting | External hexagon, AF 8 |
| Pneumatic connection 1 | External thread M5 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153361 |
Specifications may be subject to change without notice
Still deciding on qsmtl-m5-4?
Our engineers can confirm stock, price, and lead time for this Festo part.
Get a no-obligation quote in 1 minute.
