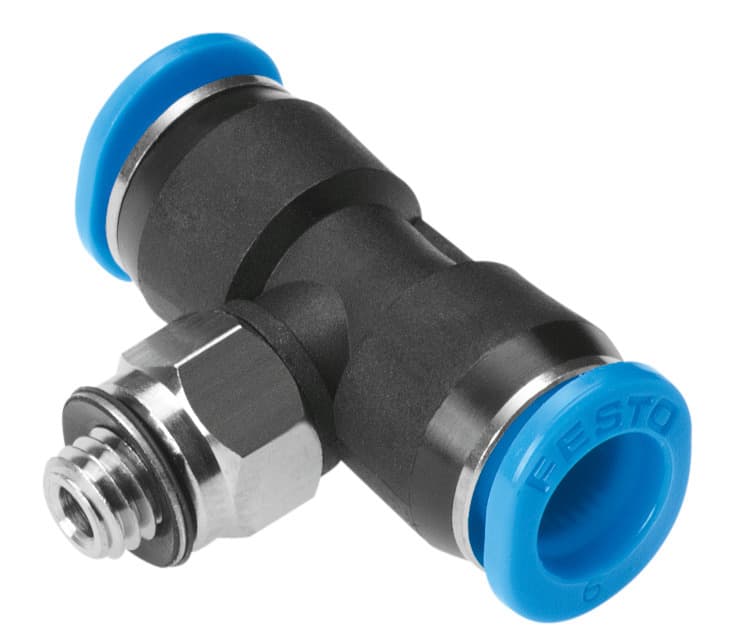

qsmt-m5-4-100
Product ID:1062
Updated: 2026/4/3
Key Features
- 1Connect pneumatic lines efficiently with a T-shaped M5 male and dual 4mm PTC ports. 2、Ensure durability using nickel-plated brass threads and a plastic body. 3、Simplify installation with an optimized bending radius to prevent damage. 4、Operate reliably in temperatures from -10°C to 80°C at up to 10 bar. 5、Achieve cost-effectiveness with packs of 100 at a competitive price.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 2.2mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | T-shape | Pack size | 100 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 1.2Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 4.4g | No. of outlets | 2 |
| No. of supply lines | 1 | Type of mounting | External hexagon, AF 8 |
| Pneumatic connection 1 | External thread M5 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130784 |
Specifications may be subject to change without notice
