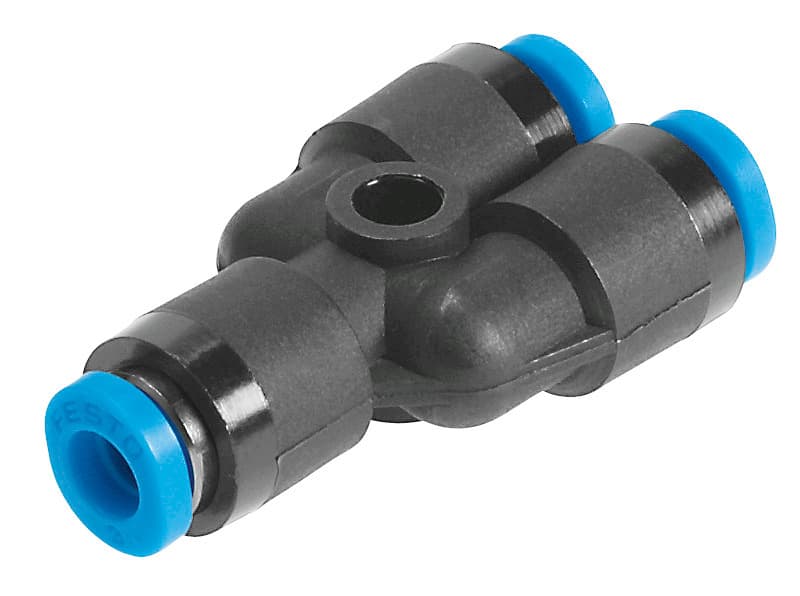

qsmy-2
Product ID:1306
Updated: 2026/4/4
Key Features
- 1Connect miniaturized pneumatic systems reliably. 2、Feature a union Y design for 2 mm tubing. 3、Operate from -10 to 80°C and up to 6 bar. 4、Seal securely with a screw-in stud ring. 5、Construct from compliant and durable PBT material.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 0.9mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Y-shape | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Product weight | 1.7g | Pneumatic connection 1 | for pneumatic tubing outside diameter 2 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 2 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 133037 |
Specifications may be subject to change without notice
