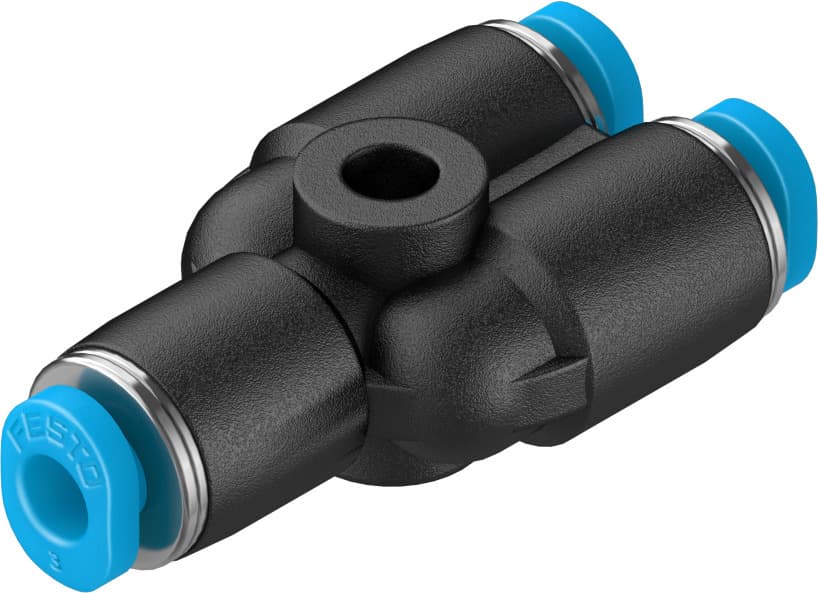

qsmy-3
Product ID:2707
Updated: 2026/7/7
Key Features
- 1Construct durable body from Polybutylene terephthalate (PBT) for high abrasion and corrosion resistance.
- 2Install easily in any position with the push-pull principle and optimized bending radius.
- 3Operate within a wide temperature range of -10°C to 80°C and pressures up to 6 bar.
- 4Meet ISO 8573-1:2010 and RoHS standards for increased pressure and temperature applications.
- 5Achieve maximum flexibility for dynamic tasks with highly resistant materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.6mm |
| Mounting position | Any | Design | Y-shape |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Product weight | 3.7g |
| No. of outlets | 2 | No. of supply lines | 1 |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 3 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 3 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153370 |
Specifications may be subject to change without notice
