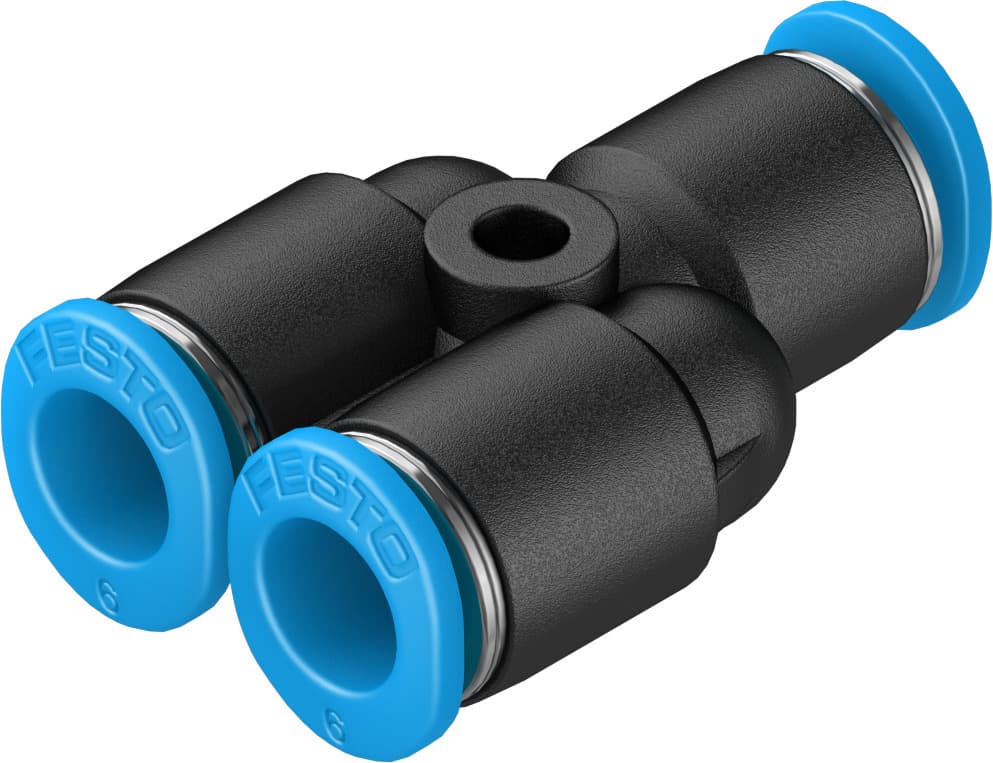

qsmy-6-100
Product ID:1065
Updated: 2026/4/3
Key Features
- 1Construct with highly resistant PBT, POM, and high-alloy stainless steel for durability. 2、Install easily using the push-pull principle to reduce setup time. 3、Operate within a wide pressure range from -0.95 to 6 bar (14 bar max). 4、Resist corrosion (CRC 1) for reliable use in various environments. 5、Comply with ISO 8573-1:2010 and RoHS standards for safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 2.9mm |
| Mounting position | Any | Design | Y-shape |
| Pack size | 100 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Product weight | 5.5g |
| No. of outlets | 2 | No. of supply lines | 1 |
| Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130787 |
Specifications may be subject to change without notice
