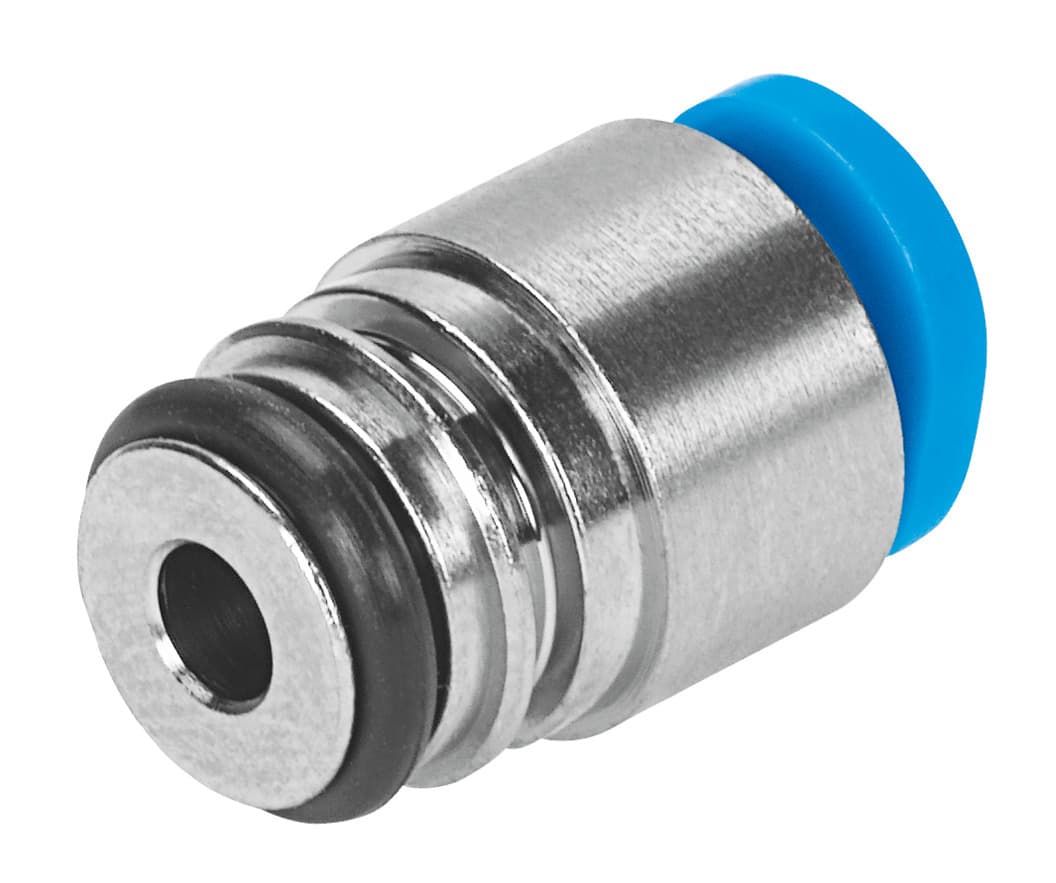

qsp10-4
Product ID:5153
Updated: 2026/4/4
Key Features
- 1Ensure leak-free connections with an O-ring seal on the screwed plug. 2、Simplify installation using the straight design and push-pull principle. 3、Guarantee compatibility with compressed air per ISO 8573-1:2010. 4、Operate reliably within a 0°C to 60°C temperature range. 5、Meet RoHS standards with a nickel-plated brass housing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of seal on screwed plug | O-ring | Mounting position | Any |
| Design | Straight design | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | 0°C 60°C | Type of mounting | Mounting pin |
| Pneumatic connection 1 | Cartridge 10 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated | Manufacturer ID | 172972 |
Specifications may be subject to change without notice
