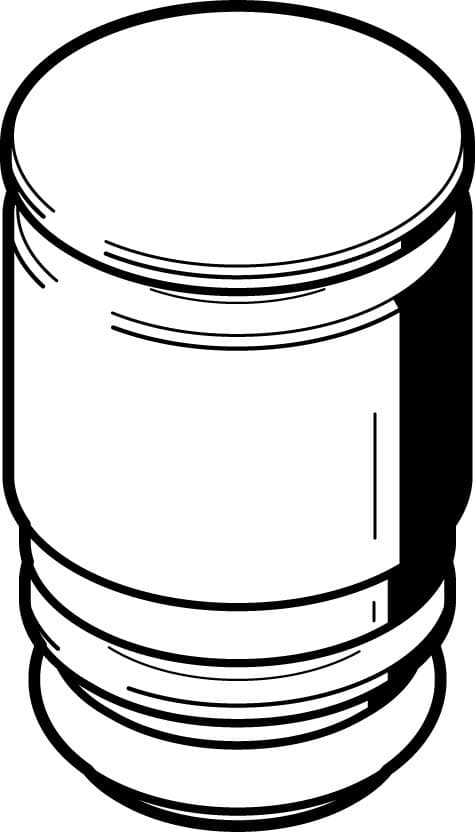

qsp10-ptb
Product ID:5155
Updated: 2026/4/4
Key Features
- 1Operate within a wide 0.095 to 1 MPa pressure range. 2、Choose optional mounting positions for flexible installation. 3、Integrate easily with a straight, user-friendly design. 4、Ensure compatibility with ISO 8573-1:2010 compressed air standards. 5、Support lubricated operation for enhanced durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Mounting position | Any |
| Design | Straight design | Pack size | 1 |
| Operating pressure for entire temperature range | 13.775psi 145psi | Maritime classification | See certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
| Product weight | 1.1g | Type of mounting | Mounting pin |
| Pneumatic connection 1 | Cartridge 10 mm | Note on materials | RoHS-compliant |
| Housing material | PA | Material of tubing seal | NBR |
| Manufacturer ID | 172976 |
Specifications may be subject to change without notice
