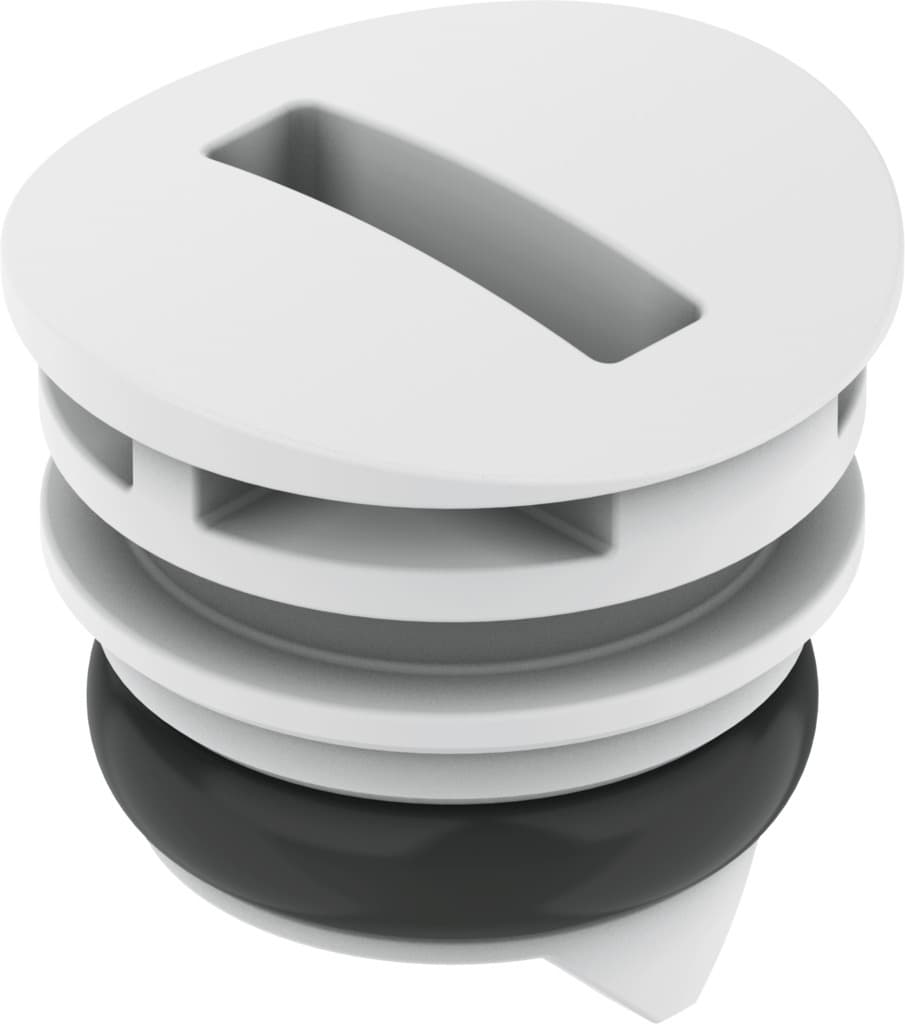

qspc10
Product ID:13054
Updated: 2026/4/3
Key Features
- 1Seal connections on valves or blanking plates securely. 2、Utilize corrosion-resistant POM material for durability. 3、Operate effectively from -5 to 60°C. 4、Benefit from a compact, lightweight 0.4-gram design. 5、Ensure compliance with industry and RoHS standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Design | Straight design |
| Pack size | 10 | Operating pressure for entire temperature range | 0psi 116psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -5°C 60°C |
| Product weight | 0.4g | Type of mounting | Mounting pin |
| Pneumatic connection 1 | Cartridge 10 mm | Note on materials | RoHS-compliant |
| Blanking plug material | POM | O-ring material | NBR |
| Manufacturer ID | 562243 |
Specifications may be subject to change without notice
