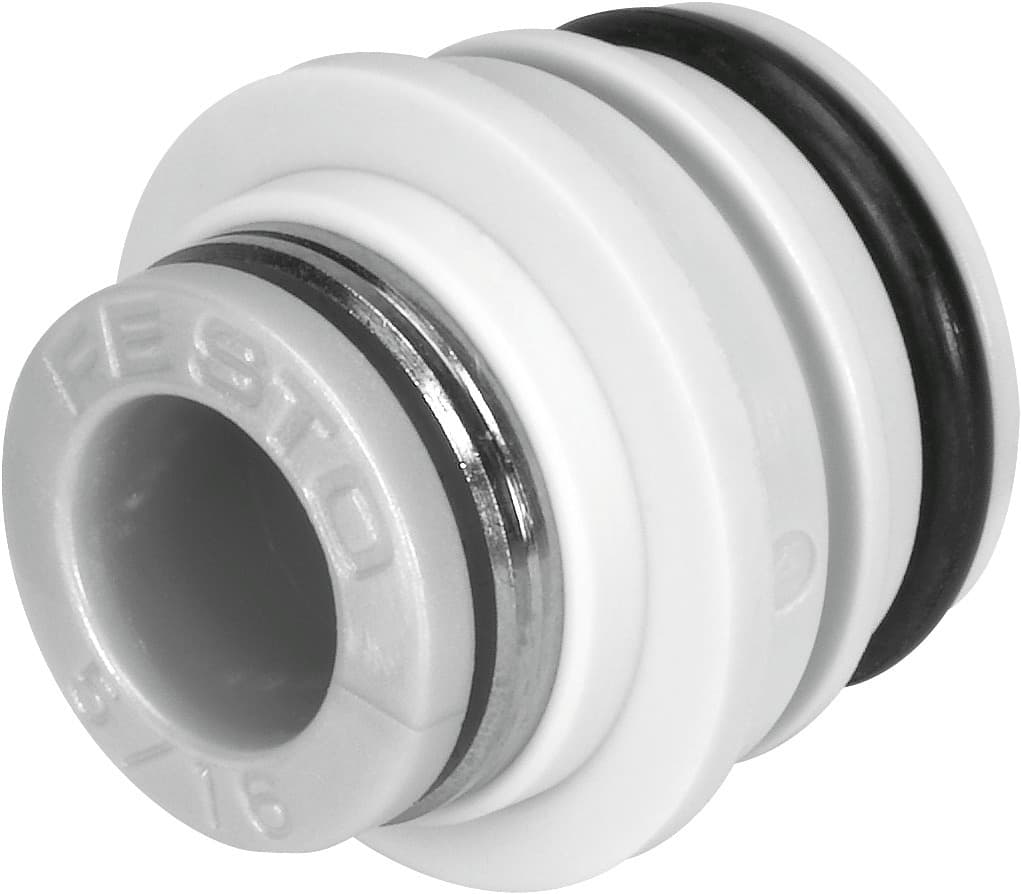

qspkg18-5/16-u
Product ID:1217
Updated: 2026/4/3
Key Features
- 1Feature a standard 5.5 mm nominal size for versatile pneumatic applications. 2、Operate reliably within a wide pressure range of -0.95 to 10 bar. 3、Utilize a push-pull principle for straightforward mounting and operation. 4、Employ a PA-reinforced housing for excellent durability and CRC 1 corrosion resistance. 5、Ensure compliance by using compressed air per ISO 8573-1:2010 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 5.5mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 5.4g |
| Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 18 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 5/16" | Ambient temperature Fahrenheit | 23°F 140°F |
| Releasing ring color | Gray | Note on materials | RoHS-compliant |
| Housing material | PA-reinforced | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 132651 |
Specifications may be subject to change without notice
