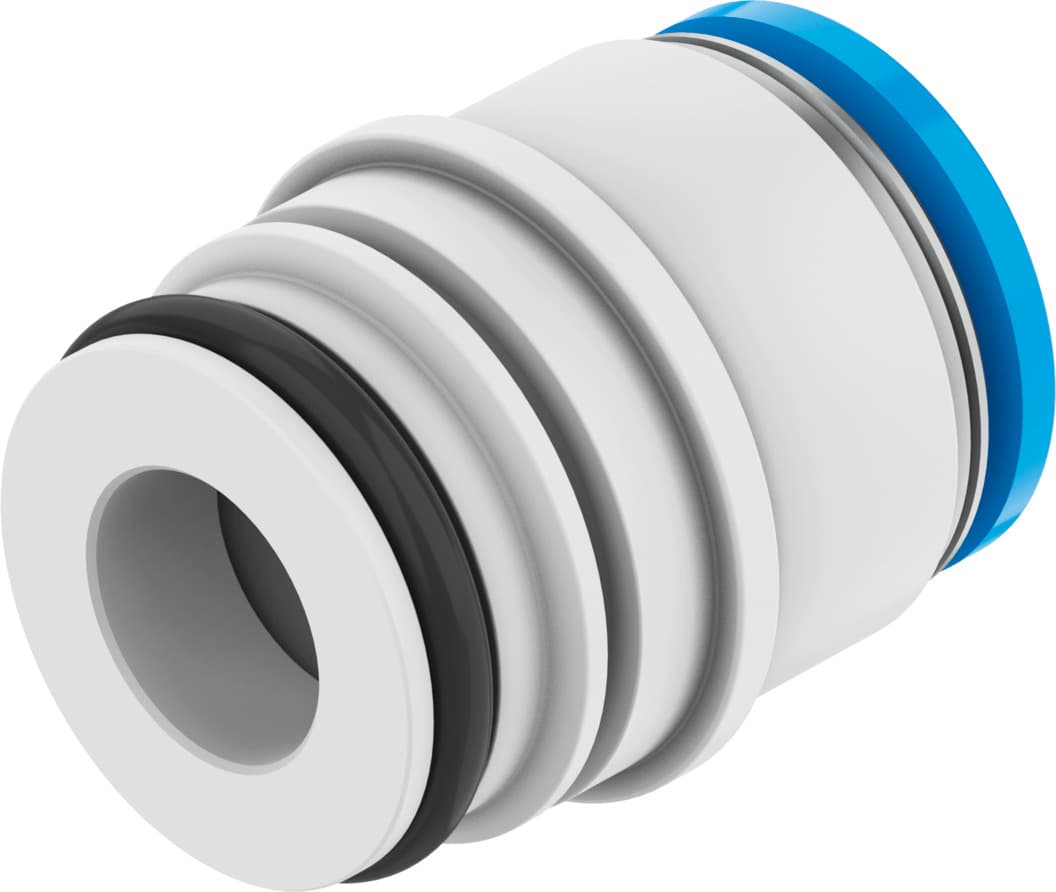

qspkg20-10
Product ID:1203
Updated: 2026/4/3
Key Features
- 1Operate on a reliable push-pull principle for smooth pneumatic performance. 2、Secure connections with an O-ring seal on the screwed plug to reduce leaks. 3、Handle versatile pressures from -0.095 MPa to 1 MPa for various applications. 4、Ensure reliable performance with compressed air compatibility to ISO 8573-1:2010. 5、Benefit from low corrosion stress with a CRC 1 classification.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 6.4mm |
| Type of seal on screwed plug | O-ring | Mounting position | Any |
| Design | Straight design | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 9g |
| Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 20 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PA-reinforced |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132634 |
Specifications may be subject to change without notice
