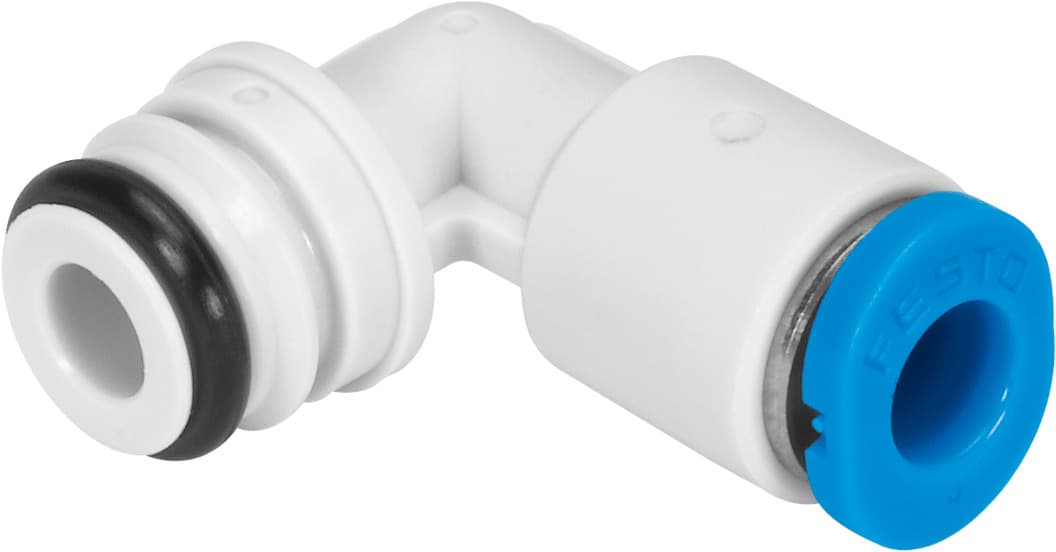

qsplkg10-3
Product ID:1221
Updated: 2026/4/3
Key Features
- 1Utilize a miniaturized design with a 1.8 mm nominal width for compact systems. 2、Mount the cartridge easily using a provided mounting pin for flexible installation. 3、Benefit from corrosion resistance class 1 for low-stress environments. 4、Operate reliably with compressed air per ISO 8573-1:2010 standards. 5、Employ the efficient push-pull principle for straightforward pneumatic control.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.8mm |
| Type of seal on screwed plug | O-ring | Mounting position | Any |
| Design | L-shape | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 2.1g |
| Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 10 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 3 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PA-reinforced |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132853 |
Specifications may be subject to change without notice
