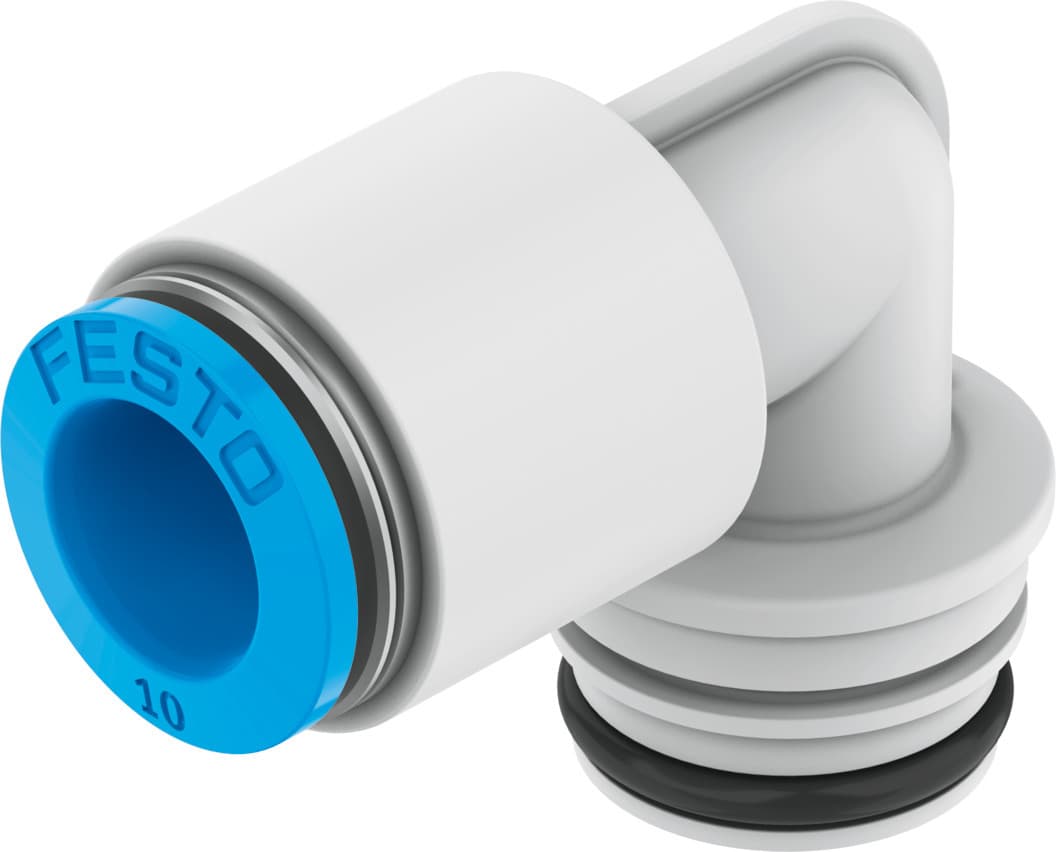

qsplkg20-12
Product ID:1225
Updated: 2026/4/3
Key Features
- 1Operate reliably with a smooth push-pull principle. 2、Mount flexibly using the versatile L-shape design. 3、Ensure performance with ISO 8573-1:2010 compressed air compatibility. 4、Resist corrosion effectively in low-stress environments. 5、Handle a wide temperature range from -5°C to 60°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 7.7mm |
| Type of seal on screwed plug | O-ring | Mounting position | Any |
| Design | L-shape | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 17g |
| Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 20 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PA-reinforced |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132857 |
