qspllk18-8
Product ID:1125
Updated: 2026/7/4
Key Features

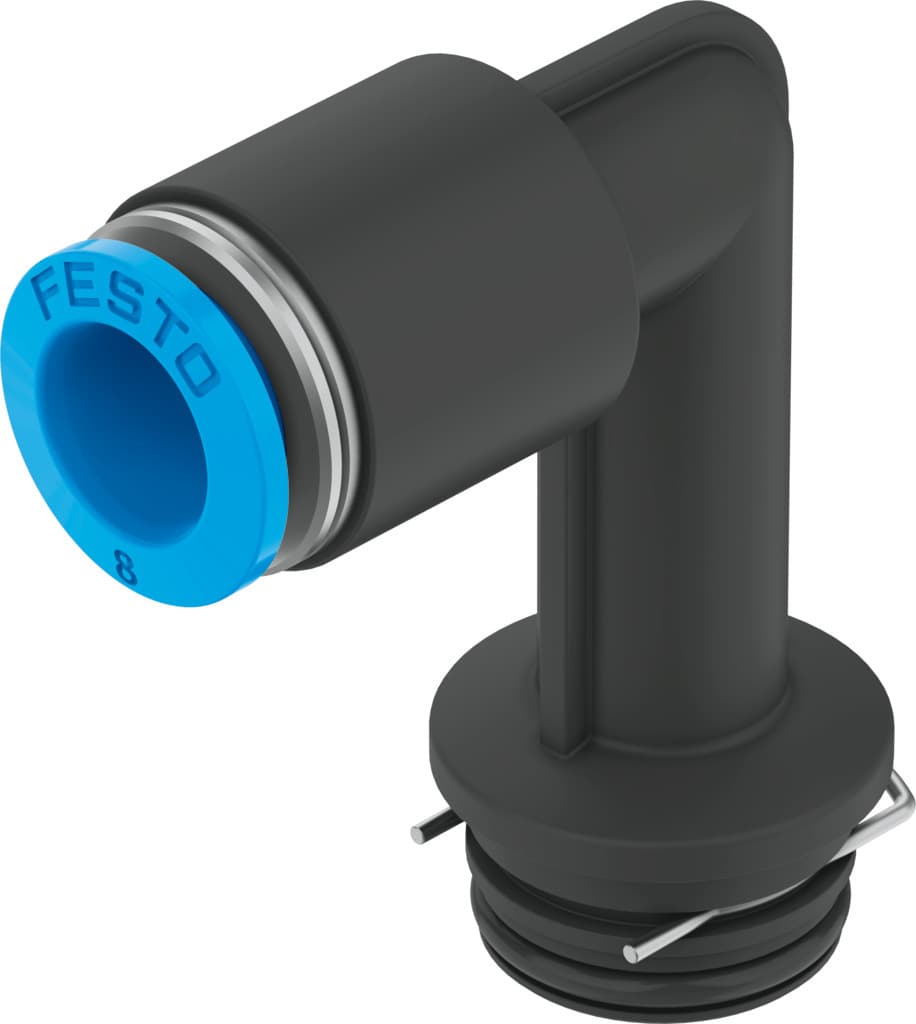

- 1Discover the high-quality Festo QSPLLK18-8 pneumatic cartridge fitting.
- 2Utilize its L-shape design with O-ring seal for reliable operation.
- 3Operate within a wide temperature range from -5°C to 60°C.
- 4Install easily with its lightweight 8.1-gram mounting pin design.
- 5Ensure durability with RoHS-compliant, corrosion-resistant materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 5.2mm |
| Type of seal on screwed plug | O-ring | Mounting position | Any |
| Design | L-shape, long | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 8.1g |
| Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 18 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PA-reinforced |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130848 |
Specifications may be subject to change without notice
