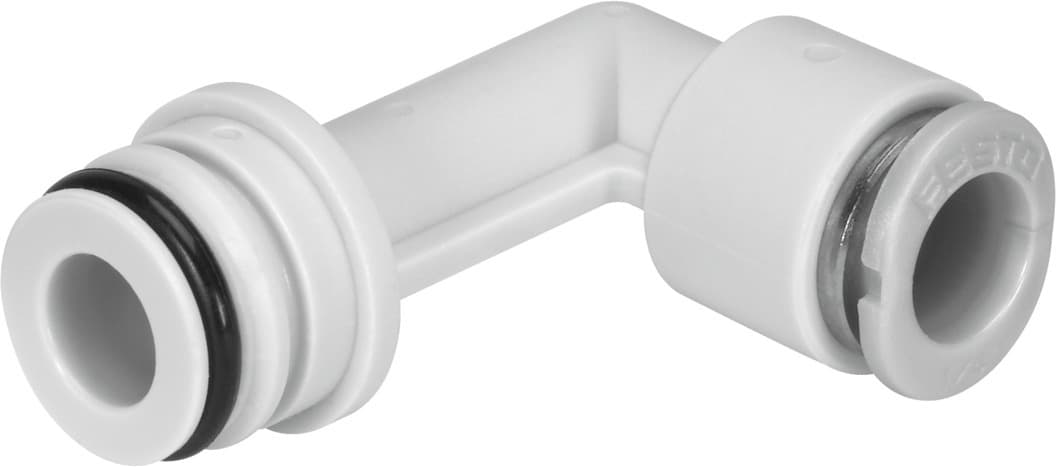

qspllkg14-5/16-u
Product ID:1263
Updated: 2026/4/4
Key Features
- 1Handle pneumatic pressures up to 14 bar reliably. 2、Operate effectively in temperatures up to 80°C. 3、Maximize component density within confined installation spaces. 4、Select from tubing O.D. sizes of 2, 3, 4, and 6 mm. 5、Simplify installation and maintenance with push-in connections.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 4.7mm |
| Mounting position | Any | Design | L-shape, long |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 8.1g |
| Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 14 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 5/16" | Ambient temperature Fahrenheit | 23°F 140°F |
| Releasing ring color | Gray | Note on materials | RoHS-compliant |
| Housing material | PA-reinforced | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 132945 |
Specifications may be subject to change without notice
