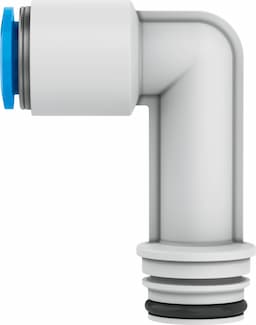

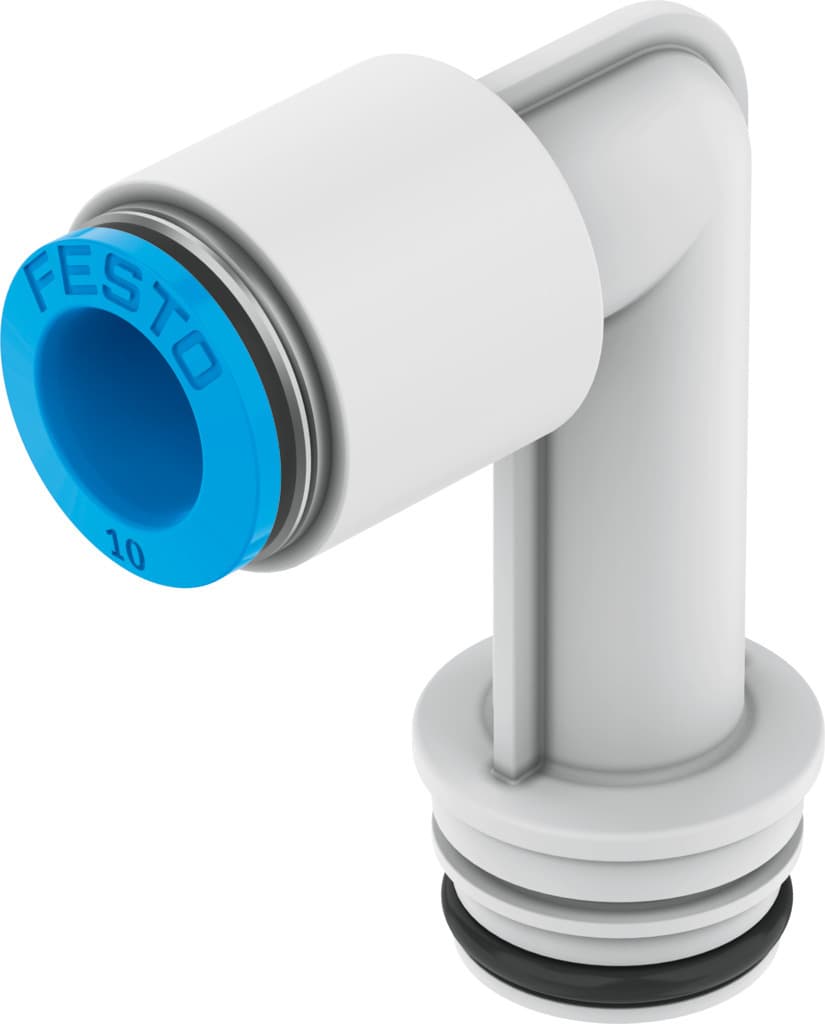

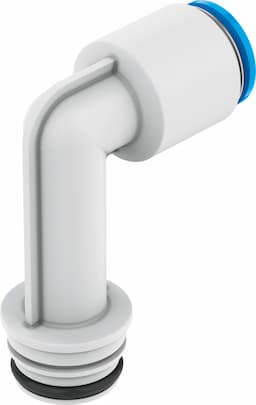

qspllkg20-12
Product ID:1232
Updated: 2026/4/3
Key Features
- 1Construct the QSPLLKG20-12 with a PA-reinforced housing and POM release ring for durability. 2、Assemble this push-in fitting in any position for versatile installation. 3、Utilize the push-pull principle for easy connection and disconnection. 4、Meet ISO 8573-1:2010 standards and RoHS compliance for safety. 5、Operate within a -5°C to 60°C range and up to 10 bar pressure.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 7.3mm |
| Type of seal on screwed plug | O-ring | Mounting position | Any |
| Design | L-shape, long | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 20g |
| Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 20 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PA-reinforced |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132865 |
Specifications may be subject to change without notice
