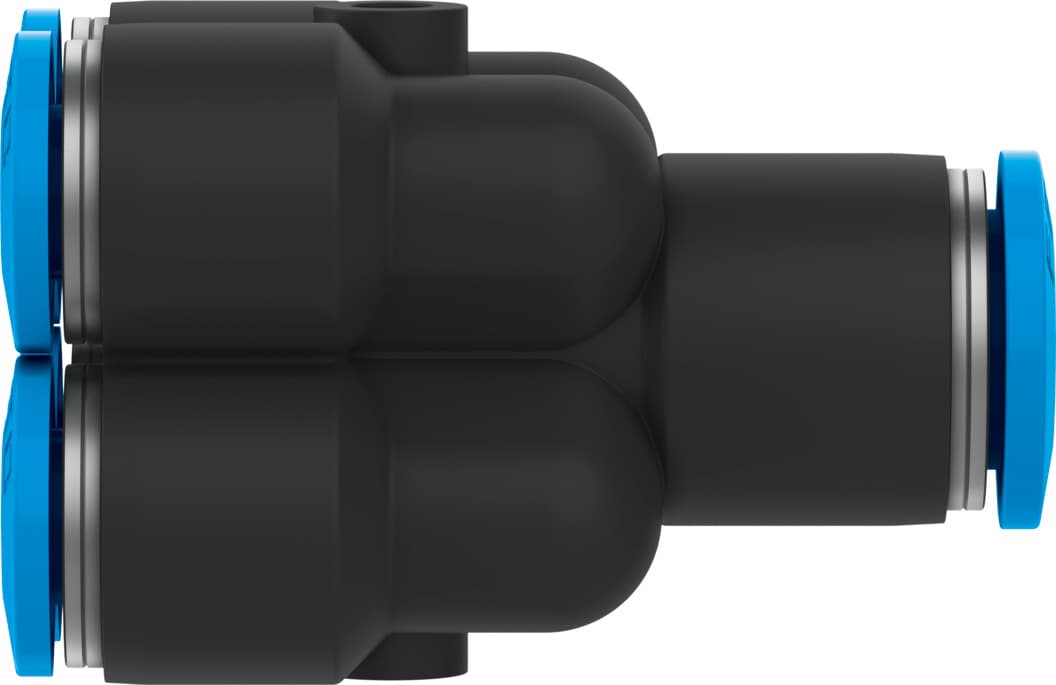

qsq-6-4
Product ID:2555
Updated: 2026/4/4
Key Features
- 1Withstand harsh conditions with low corrosion stress classification. 2、Operate across a wide pressure range from -0.95 to 14 bar. 3、Use with both compressed air and water for medium flexibility. 4、Ensure durability with robust PBT plastic construction. 5、Perform reliably in ambient temperatures from -10 to 80 °C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 3.1mm |
| Mounting position | Any | Structural design | Push-pull principle |
| Pack size | 1 | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Product weight | 14g |
| No. of outlets | 4 | No. of supply lines | 1 |
| Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153209 |
Specifications may be subject to change without notice
