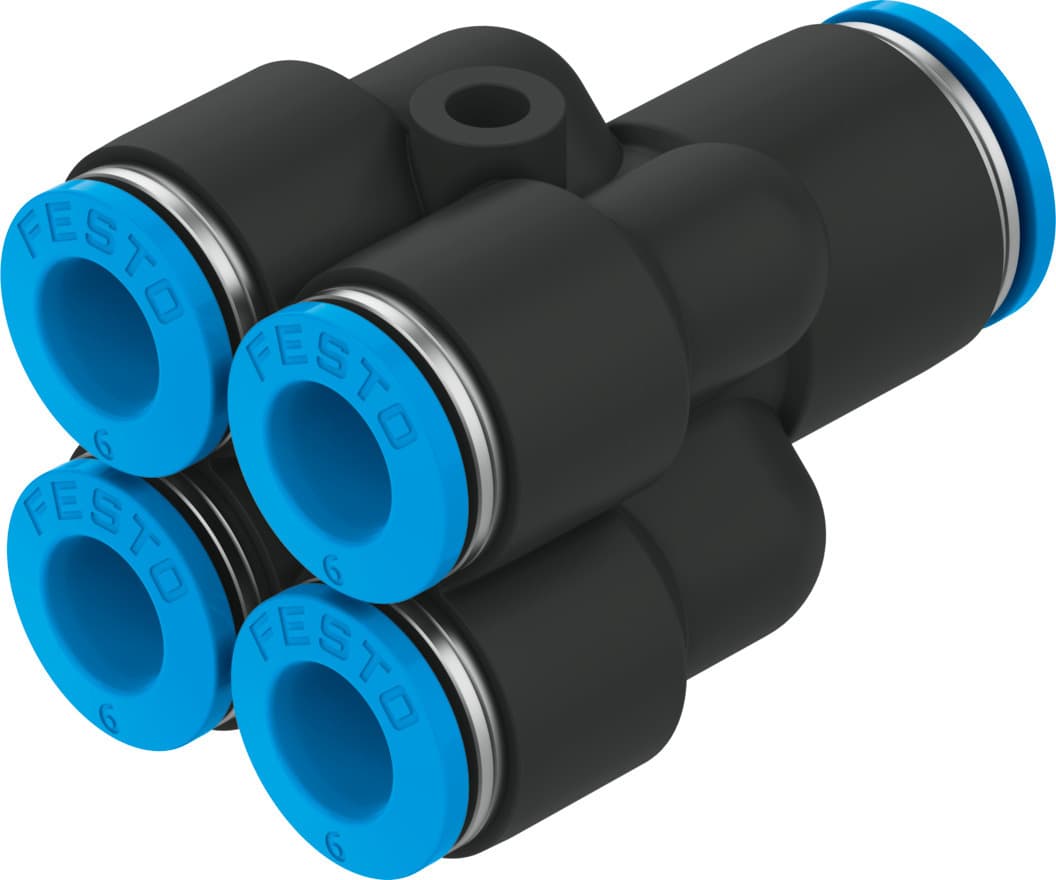

qsq-8-6
Product ID:2556
Updated: 2026/4/4
Key Features
- 1Connect a single 8mm input to four 6mm outputs efficiently. 2、Orient the device flexibly for easy mounting and configuration adjustments. 3、Construct it from chemical-resistant PBT with durable NBR seals. 4、Operate within a wide temperature range of -10°C to 80°C. 5、Minimize system stress with its lightweight design of only 21 grams.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 4.6mm |
| Mounting position | Any | Structural design | Push-pull principle |
| Pack size | 1 | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Product weight | 21g |
| No. of outlets | 4 | No. of supply lines | 1 |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 8 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153210 |
Specifications may be subject to change without notice
