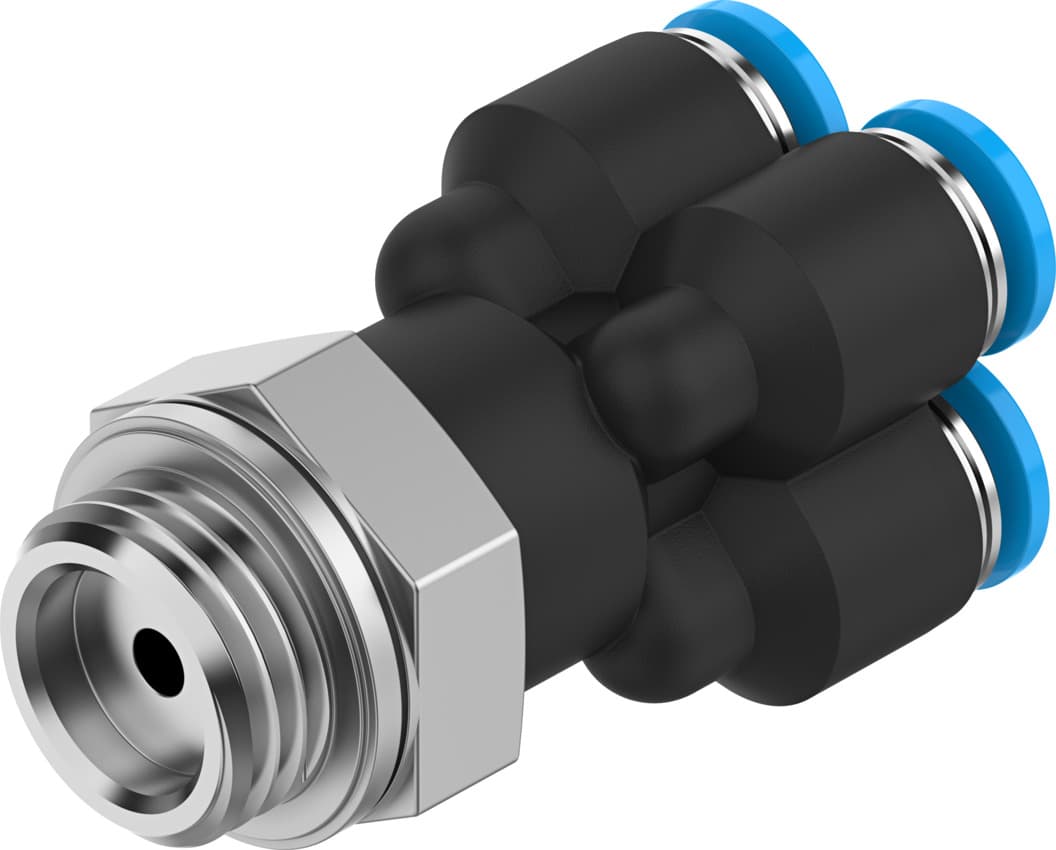

qsq-g1/4-6
Product ID:6030
Updated: 2026/4/3
Key Features
- 1Offer 4 outlets and 1 supply line for versatile pneumatic distribution. 2、Ensure easy connection with the push-pull principle design. 3、Provide compatibility with compressed air and water per ISO standards. 4、Feature CRC 1 rating for durability in harsh environments. 5、Simplify installation with a 9 Nm nominal tightening torque.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 5.2mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Structural design | Push-pull principle | Pack size | 1 |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Maritime classification | See certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Nominal tightening torque | 9Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 35g |
| No. of outlets | 4 | No. of supply lines | 1 |
| Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 186263 |
Specifications may be subject to change without notice
