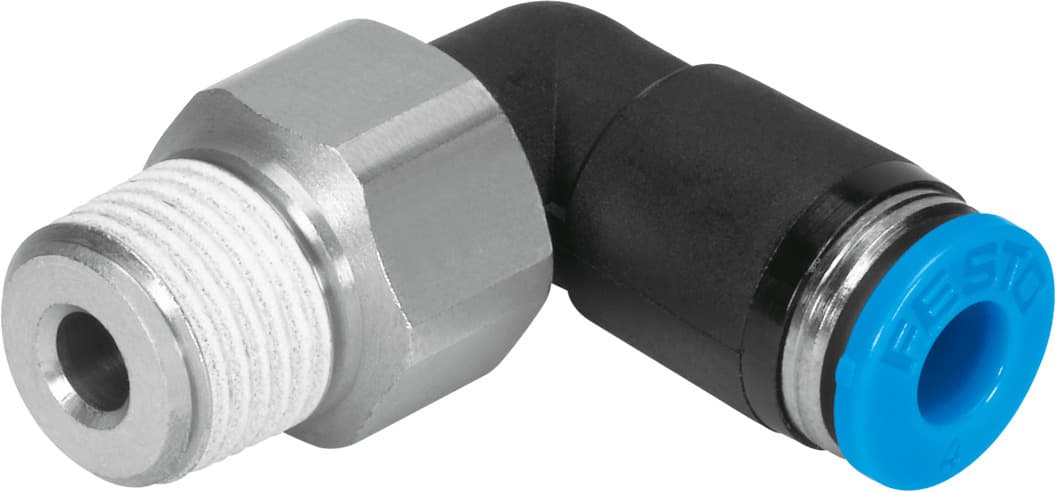

qsrl-1/2-1/2-u
Product ID:2842
Updated: 2026/4/3
Key Features
- 1Enable 360° rotation for flexible pneumatic layouts. 2、Incorporate a ball bearing for smooth, reliable operation. 3、Secure connections with a male thread and external hexagon. 4、Enhance sealing reliability with a coated screw-in stud. 5、Ensure broad compatibility with 1/2" tubing systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Type of seal on screwed plug | Coating |
| Mounting position | Any | Design | L-shape |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. tightening torque | 30Nm |
| Type of mounting | External hexagon 1 | Pneumatic connection 1 | external thread 1/2 NPT |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 1/2" | Ambient temperature Fahrenheit | 14°F 140°F |
| Releasing ring color | Gray | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153974 |
Specifications may be subject to change without notice
