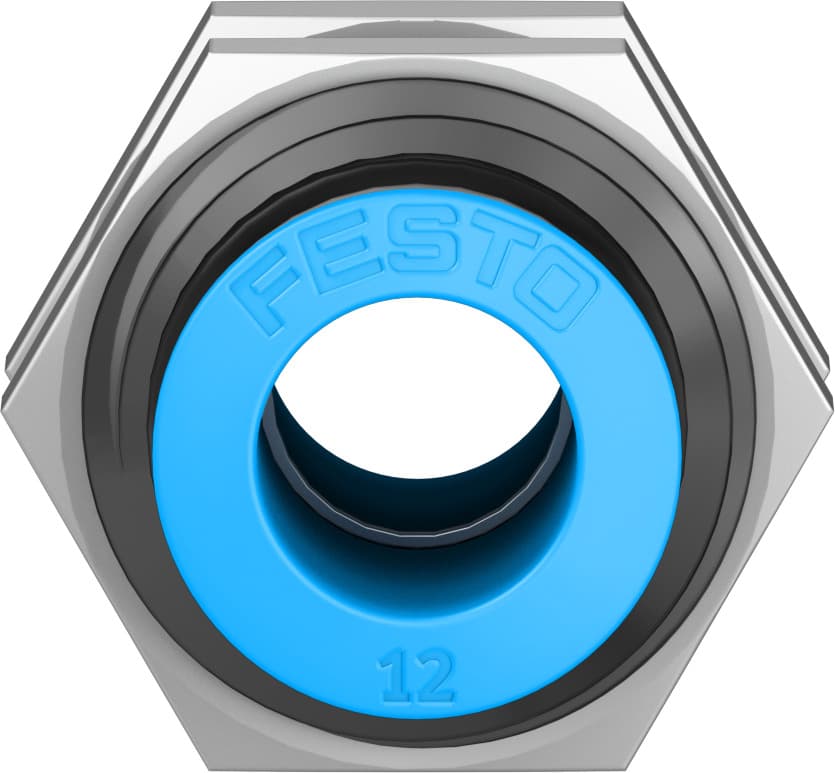

qss-12-20
Product ID:1070
Updated: 2026/4/3
Key Features
- 1Secure reliable pneumatic connections with a versatile 11 mm nominal width. 2、Gain installation flexibility via optional mounting positions. 3、Simplify connections using the push-pull principle to prevent misalignment. 4、Operate across a wide pressure range from -0.95 to 6 bar. 5、Meet Class 4 cleanroom standards per ISO 14644-1 for various industries.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 11mm |
| Mounting position | Any | Design | Bulkhead |
| Pack size | 20 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 52g |
| Type of mounting | External hexagon, AF 27 | Pneumatic connection 1 | for pneumatic tubing outside diameter 12 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | Aluminum, anodized |
| Releasing ring material | POM | Nut material | Brass, nickel-plated |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130792 |
Specifications may be subject to change without notice
