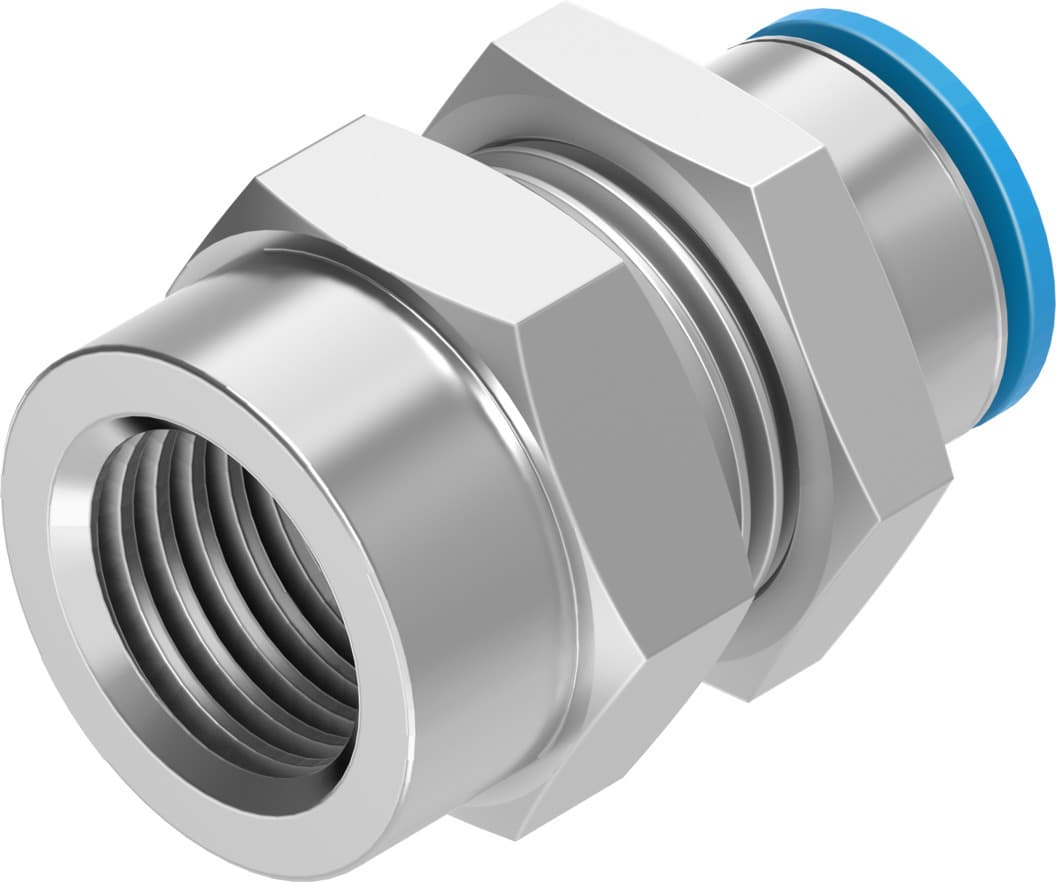

qssf-1/2-16-b
Product ID:6760
Updated: 2026/4/3
Key Features
- 1Ensure reliable pneumatic connections with a secure push-pull principle. 2、Operate across a wide pressure range from -0.95 to 6 bar. 3、Resist corrosion with brass and nickel-plated CRC 1 materials. 4、Mount flexibly using external 29 mm or 32 mm hexagon sizes. 5、Save space with a compact design weighing only 116 grams.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 15mm |
| Mounting position | Any | Design | Bulkhead |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Nominal tightening torque | 26Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 116g |
| Type of mounting | External hexagon, AF 29 External hexagon, AF 32 | Pneumatic connection 1 | Internal thread G1/2 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 16 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
| Releasing ring material | POM | Nut material | Brass, nickel-plated |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 190657 |
