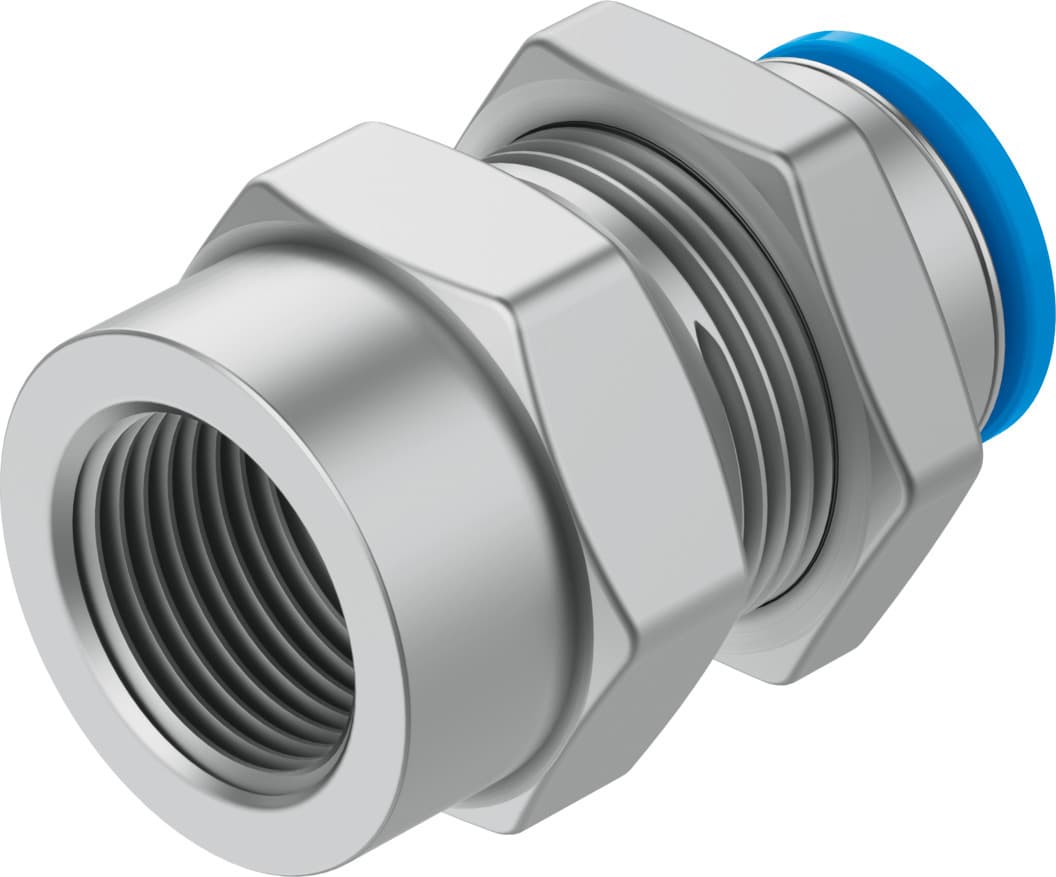

qssf-1/4-8-b
Product ID:2512
Updated: 2026/4/4
Key Features
- 1Install easily with the push-in principle for 8mm tubing. 2、Operate reliably from -10°C to 80°C at up to 6 bar pressure. 3、Ensure durability with corrosion-resistant nickel-plated brass construction. 4、Meet ISO 8573-1:2010 and RoHS standards for compliance. 5、Support lubricated operation for enhanced performance in dynamic applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 7mm |
| Mounting position | Any | Design | Bulkhead |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Nominal tightening torque | 9Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 34g |
| Type of mounting | External hexagon, AF 19 | Pneumatic connection 1 | Internal thread G1/4 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
| Releasing ring material | POM | Nut material | Brass, nickel-plated |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153166 |
Specifications may be subject to change without notice
