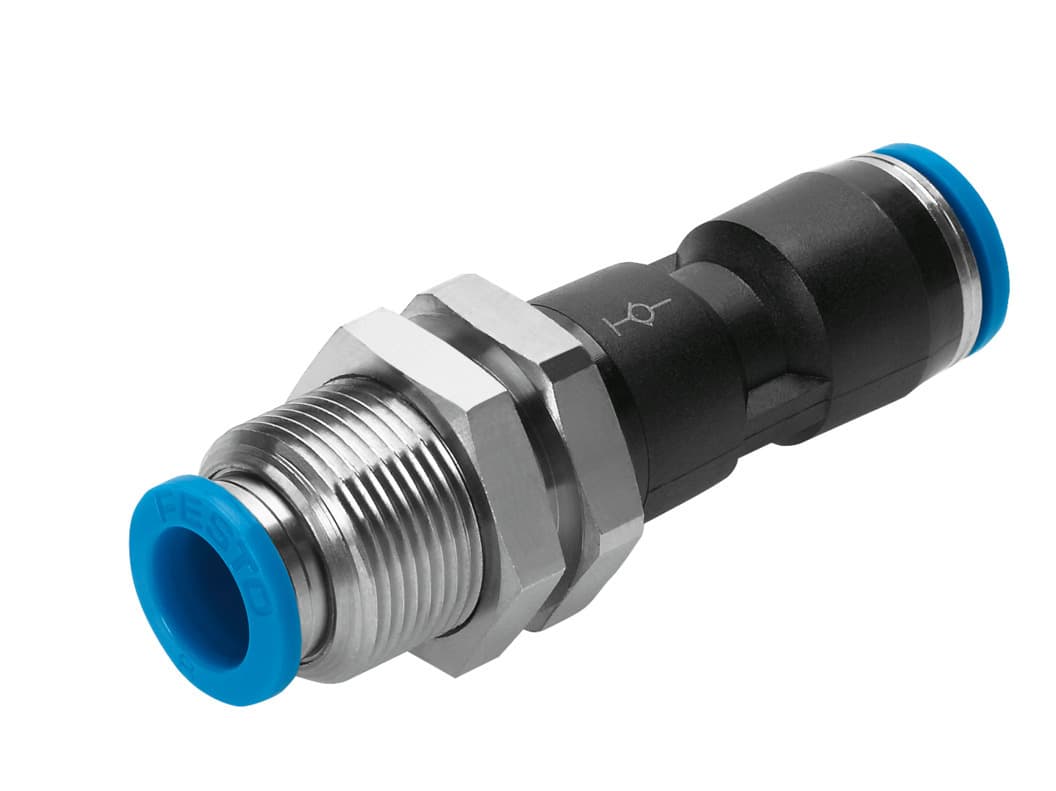

qssk-10
Product ID:920
Updated: 2026/4/3
Key Features
- 1Ensure compatibility with a 5.4 mm nominal size for various pneumatic systems. 2、Connect with 17+ tubing types including PAN, PUN, and PTFEN for versatile applications. 3、Install and remove tubing easily using the tool-free push-pull principle. 4、Operate reliably across a wide pressure range from -0.095 to 0.6 MPa. 5、Utilize RoHS-compliant PBT housing and stainless steel clamp for corrosion resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 5.4mm |
| Approved tubing type | PAN- PAN-MF- PAN-R- PAN-V0- PEN- PFAN- PLN- PTFEN- PUN- PUN-CM- PUN-DUO- PUN-H- PUN-H-DUO- PUN-S- PUN-S-DUO- PUN-V0- | Tubing insertion depth | 20.7mm |
| Mounting position | Any | Design | Bulkhead |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Product weight | 68g | Pneumatic connection 1 | for pneumatic tubing outside diameter 10 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130640 |
