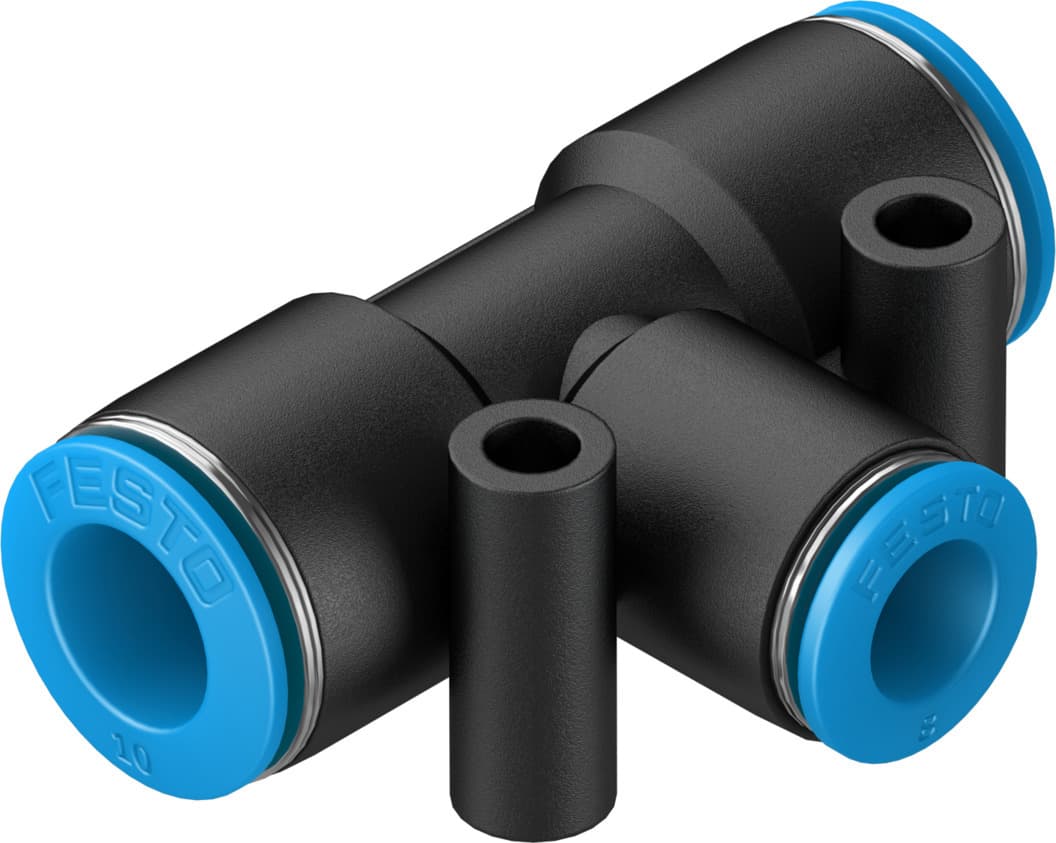

qst-10-8-50
Product ID:1099
Updated: 2026/7/4
Key Features
- 1Ensure durability with low corrosion stress classification (CRC 1).
- 2Operate effectively across a wide -10°C to 80°C temperature range.
- 3Install easily using the push-pull principle for secure connections.
- 4Connect flexibly with two ports for 10mm and 8mm tubing.
- 5Meet ISO 8573-1 and RoHS standards for compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 4.9mm |
| Mounting position | Any | Design | T-shape |
| Pack size | 50 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 23g |
| No. of outlets | 2 | No. of supply lines | 1 |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 10 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130822 |
Specifications may be subject to change without notice
