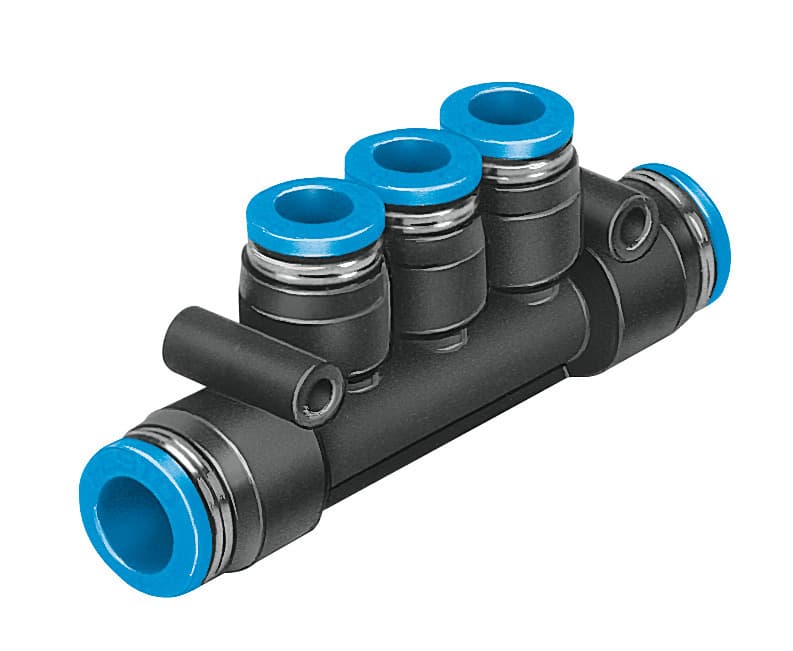

qst3-10-8
Product ID:2551
Updated: 2026/4/4
Key Features
- 1Ensure secure pneumatic connections with the push-pull design. 2、Handle both compressed air and water for versatile use. 3、Operate reliably from -10°C to 80°C in harsh environments. 4、Reduce corrosion stress with the CRC 1 classified fitting. 5、Simplify installation using the standard 4.9 mm size.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 4.9mm |
| Mounting position | Any | Structural design | Push-pull principle |
| Pack size | 1 | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C |
| Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Product weight | 33g | No. of outlets | 4 |
| No. of supply lines | 1 | Pneumatic connection 1 | for pneumatic tubing outside diameter 10 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153205 |
Specifications may be subject to change without notice
