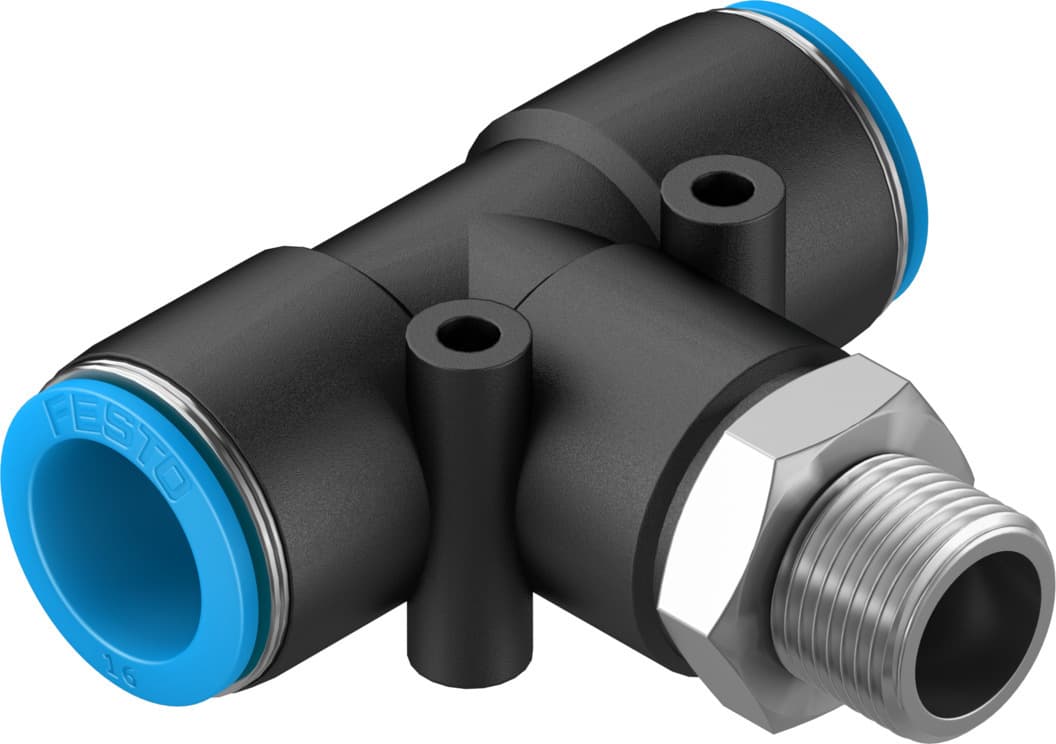

qst-3/8-16
Product ID:4956
Updated: 2026/4/4
Key Features
- 1Achieve 360° orientation with a male thread and external hexagon for versatile pneumatic system setup. 2、Operate with compressed air per ISO8573-1:2010 for reliable industrial applications. 3、Benefit from CRC 1 corrosion resistance for durability in various environments. 4、Enhance performance and longevity with lubricated operation capability. 5、Meet precise technical requirements with an 11 mm nominal size and 22 Nm max torque.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 11mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | T-shape | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Nominal tightening torque | 15.5Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 89g |
| No. of outlets | 2 | No. of supply lines | 1 |
| Type of mounting | External hexagon, AF 22 | Pneumatic connection 1 | External thread R3/8 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 16 mm | Releasing ring color | Blue |
| Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 164959 |
