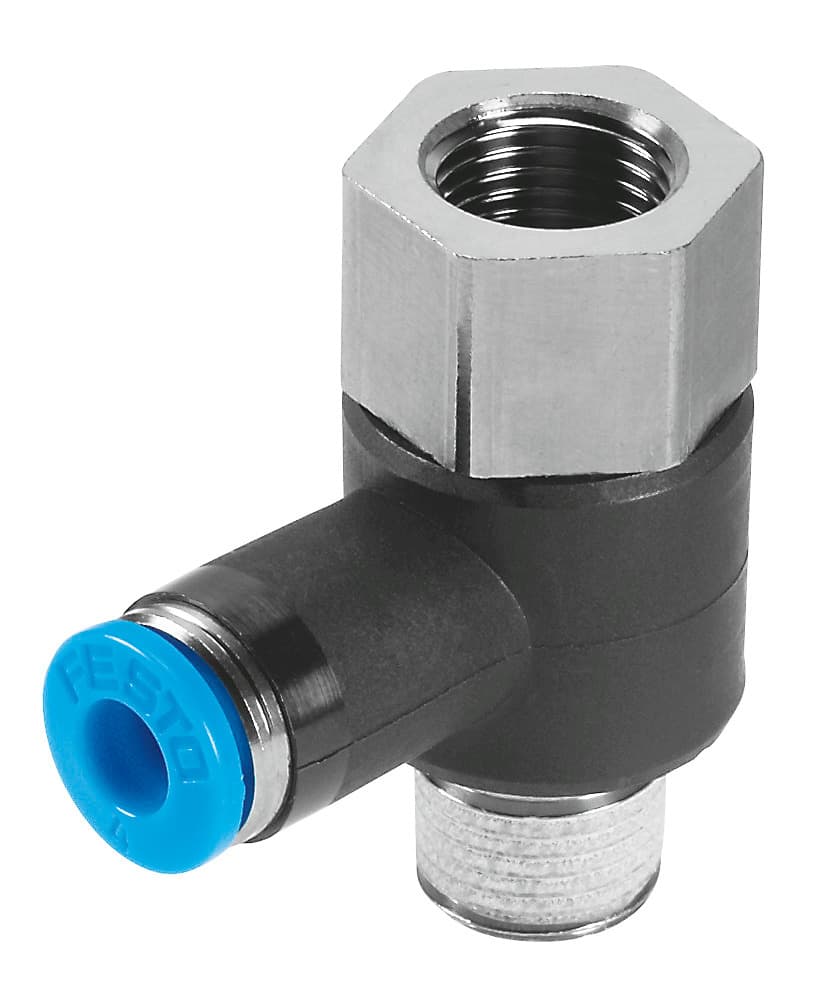

qstf-1/8-4-b
Product ID:2528
Updated: 2026/4/4
Key Features
- 1Ensure reliable, leak-free pneumatic connections for industrial systems. 2、Utilize a compact 2.8 mm design to fit tight spaces easily. 3、Choose versatile mounting options with a 14 mm external hexagon. 4、Resist corrosion with high-quality PBT and nickel-plated brass materials. 5、Operate across a wide range from -10°C to 80°C and -0.095 to 0.6 MPa.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 2.8mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | L-shape, additional connection internal thread lengthwise | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 22g | No. of outlets | 2 |
| No. of supply lines | 1 | Type of mounting | External hexagon, AF 14 |
| Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | Internal thread G1/8 for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153182 |
Specifications may be subject to change without notice
