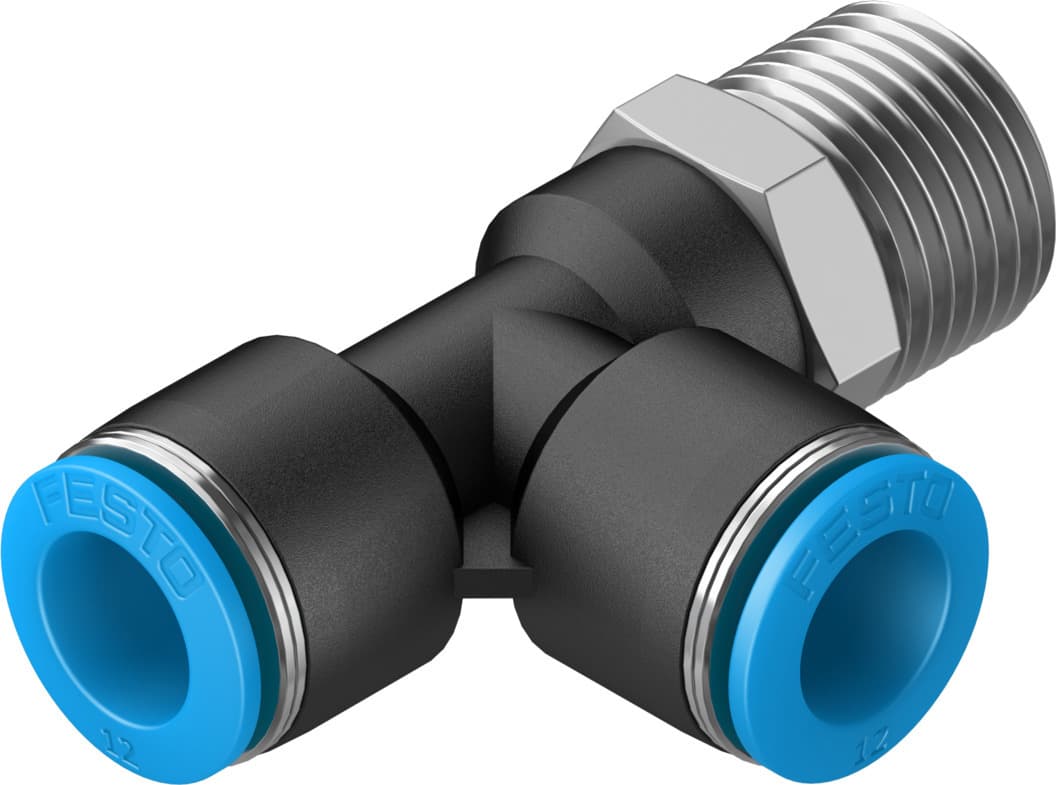

qstl-1/2-12
Product ID:2473
Updated: 2026/4/4
Key Features
- 1Offer a versatile 360° orientable design for easy installation. 2、Ensure long-lasting performance with CRC 1 corrosion resistance. 3、Provide reliable operation with ISO 8573-1:2010 compressed air compliance. 4、Support lubricated operation to enhance durability under pressure. 5、Feature a compact, lightweight design at only 72 grams.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 10.3mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | L-shape, additional push-in connector, lengthwise | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 26Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 72g | No. of outlets | 2 |
| No. of supply lines | 1 | Type of mounting | External hexagon, AF 21 |
| Pneumatic connection 1 | External thread R1/2 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153126 |
