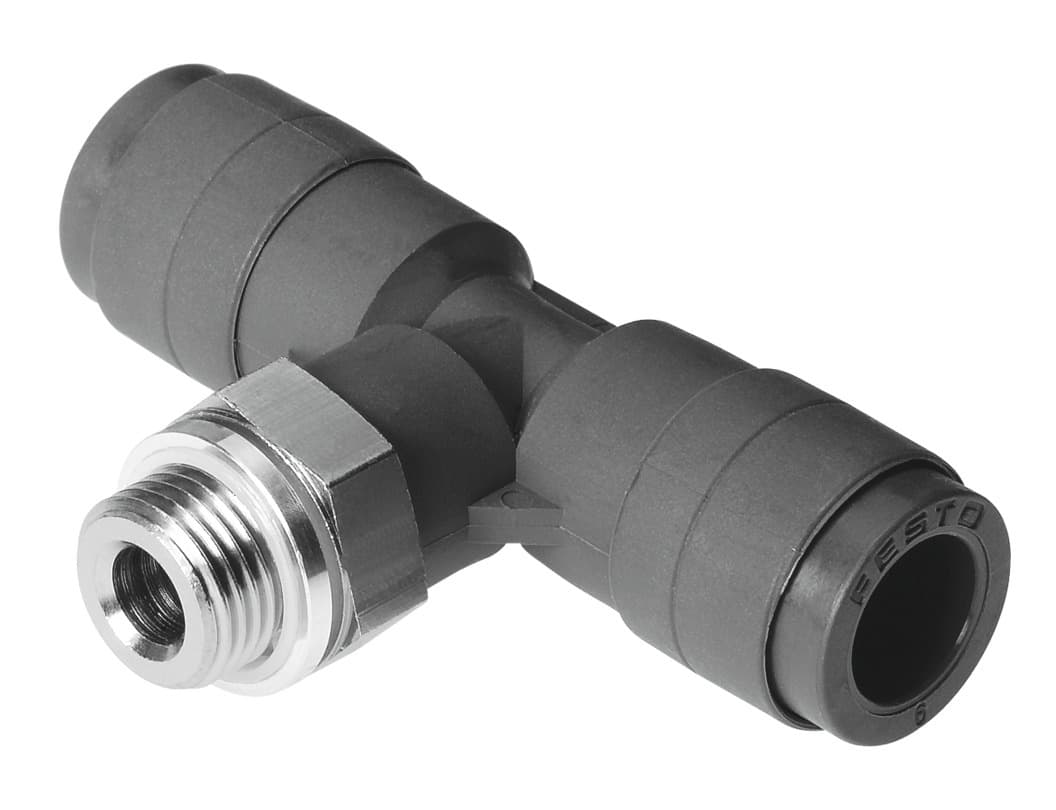

qst-v0-g1/2-10
Product ID:6112
Updated: 2026/4/3
Key Features
- 1Ensure precise pneumatic connections with an 8.3 mm nominal diameter. 2、Gain superior fire resistance with UL94 V-0 housing and ring. 3、Handle up to 10 bar pressure for versatile air and water applications. 4、Secure leak-free connections using a sealing ring on the plug. 5、Simplify installation with the push-pull principle and 24 mm hexagon.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 8.3mm |
| Material fire test | UL94 V-0 (housing) UL94 V-0 (releasing ring) | Type of seal on screwed plug | Sealing ring |
| Design | T-shape | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
| Nominal tightening torque | 26Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 73g | Type of mounting | External hexagon, AF 24 |
| Pneumatic connection 1 | External thread G1/2 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
| Releasing ring color | Black | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Material of threaded seal | Aluminum PBT | Releasing ring material | PBT |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel Brass |
| Manufacturer ID | 186345 |
Specifications may be subject to change without notice
