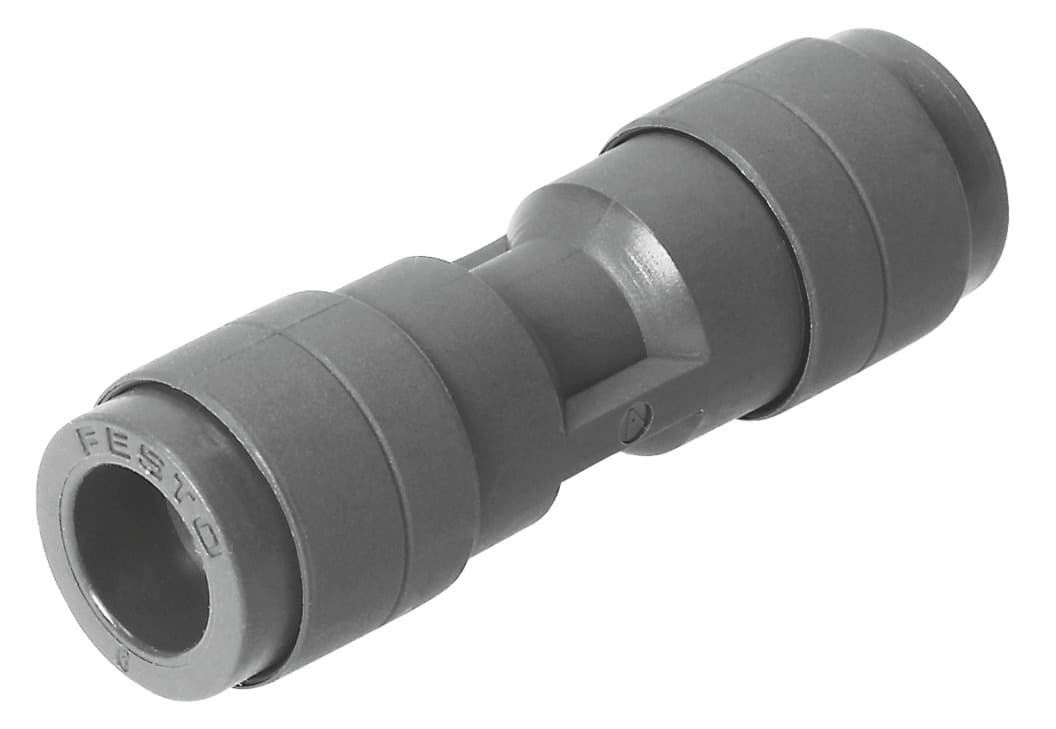

qs-v0-10
Product ID:4062
Updated: 2026/4/3
Key Features
- 1Ensure compatibility with a standard 9MM nominal size for various pneumatic systems. 2、Provide superior fire safety with UL94 V-0 rated housing and releasing ring. 3、Simplify installation and operation via a straight push-pull design principle. 4、Handle versatile conditions with 10BAR pressure and 0.6 MPa water rating. 5、Construct durable connections using high-quality PBT and NBR materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 9mm |
| Material fire test | UL94 V-0 (housing) UL94 V-0 (releasing ring) | Design | Straight design |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | 0°C 60°C | Product weight | 17g |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 10 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
| Releasing ring color | Black | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | PBT |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel Brass |
| Manufacturer ID | 160548 |
Specifications may be subject to change without notice
