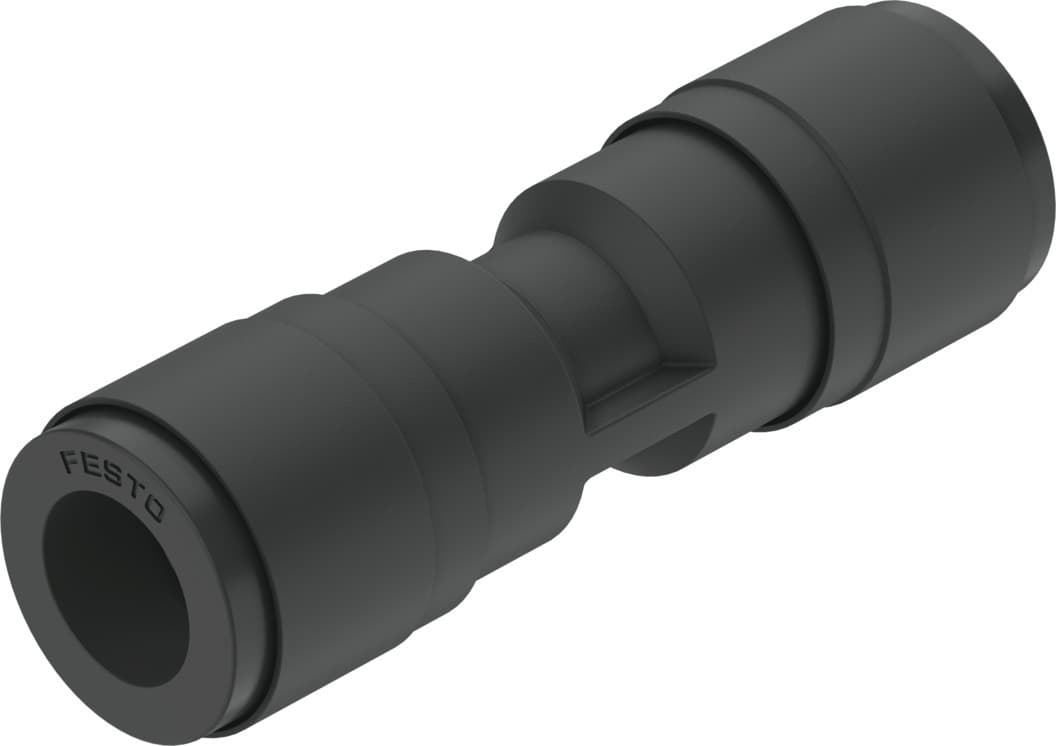

qs-v0-6
Product ID:4060
Updated: 2026/4/3
Key Features
- 1Utilize PBT-reinforced material for robust durability. 2、Operate across -0.95 to 10 bar pressure range. 3、Connect hoses easily with push-pull principle. 4、Meet UL94 V-0 and maritime corrosion standards. 5、Ensure reliability with RoHS and ISO 8573-1 compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 4.3mm |
| Material fire test | UL94 V-0 (housing) UL94 V-0 (releasing ring) | Design | Straight design |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | 0°C 60°C | Product weight | 7.8g |
| Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Black | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | PBT |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel Brass |
| Manufacturer ID | 160546 |
Specifications may be subject to change without notice
