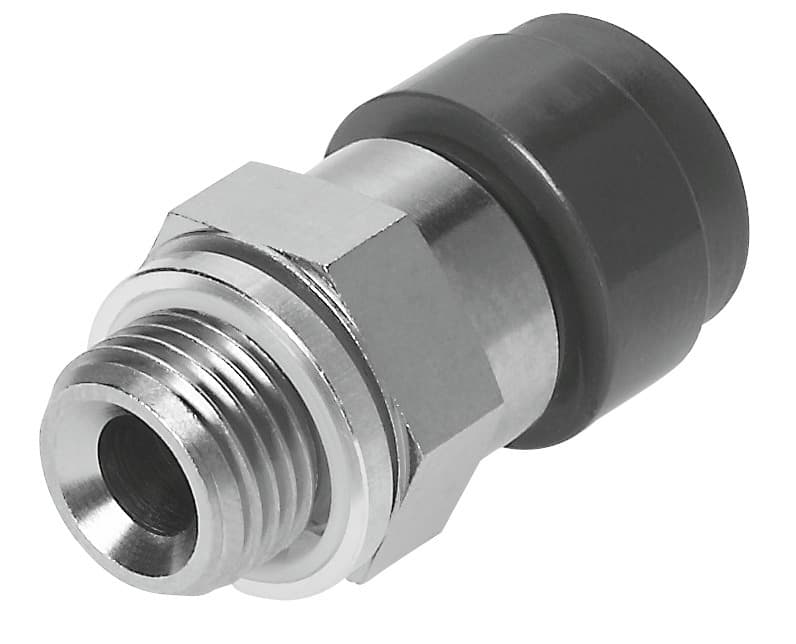

qs-v0-g1/4-10
Product ID:6085
Updated: 2026/7/4
Key Features
- 1Ensure safety with UL94 V-0 rated, fire-resistant materials.
- 2Simplify installation using the push/pull principle for quick connections.
- 3Guarantee performance for compressed air per ISO8573-1:2010 standards.
- 4Resist corrosion with a CRC 2 rating for harsh environments.
- 5Operate reliably from -0.95 to 10 bar and 0 to 60°C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 8.5mm |
| Material fire test | UL94 V-0 (housing) UL94 V-0 (releasing ring) | Type of seal on screwed plug | Sealing ring |
| Design | Straight design | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
| Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 22g | Type of mounting | External hexagon, AF 17 |
| Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
| Releasing ring color | Black | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Material of threaded seal | Aluminum PBT | Releasing ring material | PBT |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel Brass |
| Manufacturer ID | 186318 |
Specifications may be subject to change without notice
