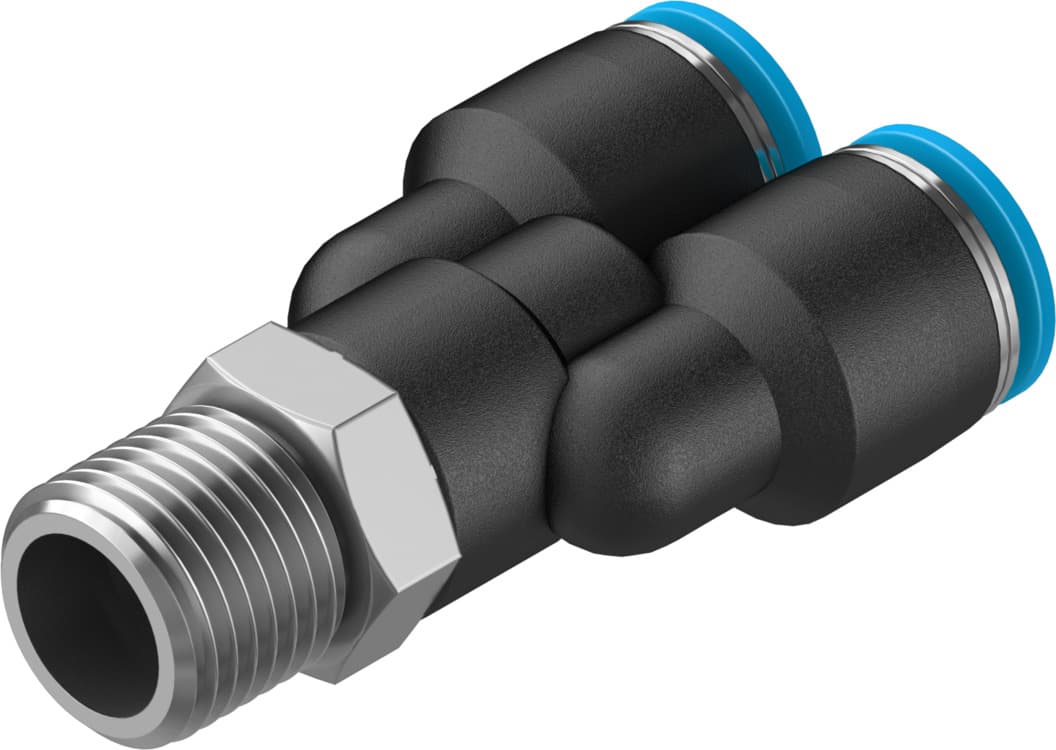

qsy-1/4-8
Product ID:2489
Updated: 2026/4/4
Key Features
- 1Ensure reliable pneumatic connections to minimize leaks and ensure consistent performance. 2、Mount in any position for flexible system design and installation. 3、Construct with durable PBT material to withstand various pressures and temperatures. 4、Install quickly with a push-in design, eliminating the need for tools. 5、Comply with ISO 8573-1:2010 for compressed air and manufacturer-declared water usage.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 6.2mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | Y-shape | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Nominal tightening torque | 9Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 25g |
| No. of outlets | 2 | No. of supply lines | 1 |
| Type of mounting | External hexagon, AF 14 | Pneumatic connection 1 | External thread R1/4 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
| Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153142 |
