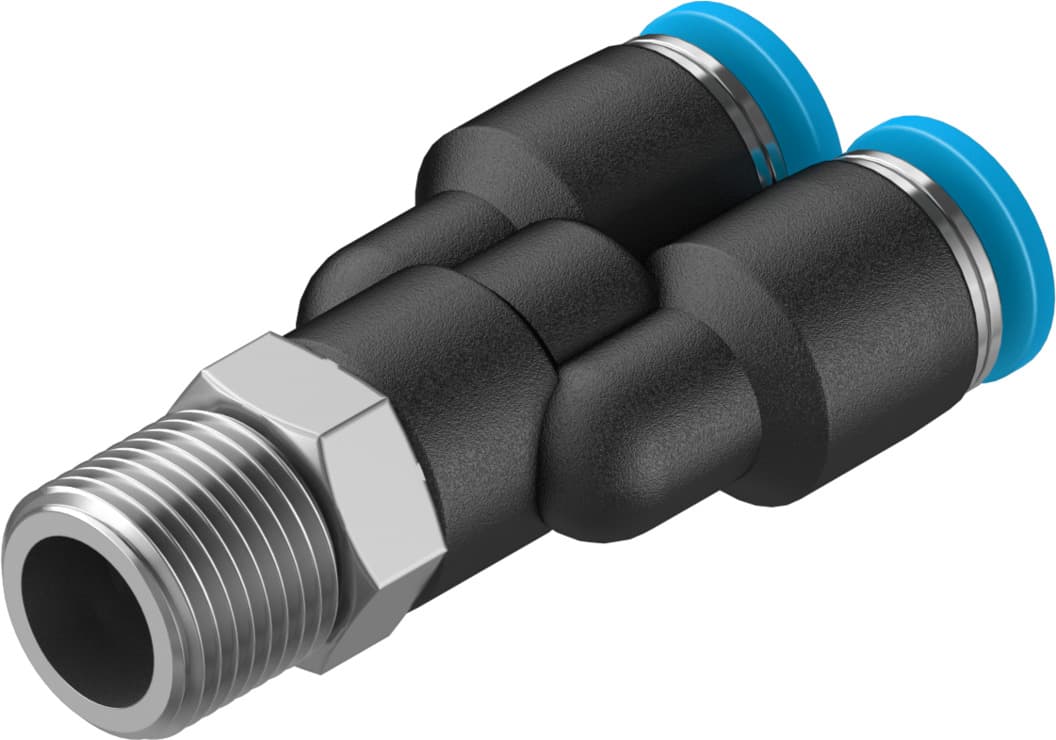

qsy-1/8-4
Product ID:2485
Updated: 2026/4/4
Key Features
- 1Ensure durability with high-quality PBT and nickel-plated brass construction. 2、Simplify versatile installations for straight or Y-Yap splicer applications. 3、Operate reliably within a -0.95 to 6 bar pressure range. 4、Maintain performance in temperatures from -10°C to 80°C. 5、Reduce setup time using the quick push-in installation principle.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 3.1mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | Y-shape | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Nominal tightening torque | 7Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 13g |
| No. of outlets | 2 | No. of supply lines | 1 |
| Type of mounting | External hexagon, AF 10 | Pneumatic connection 1 | External thread R1/8 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm | Releasing ring color | Blue |
| Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153138 |
