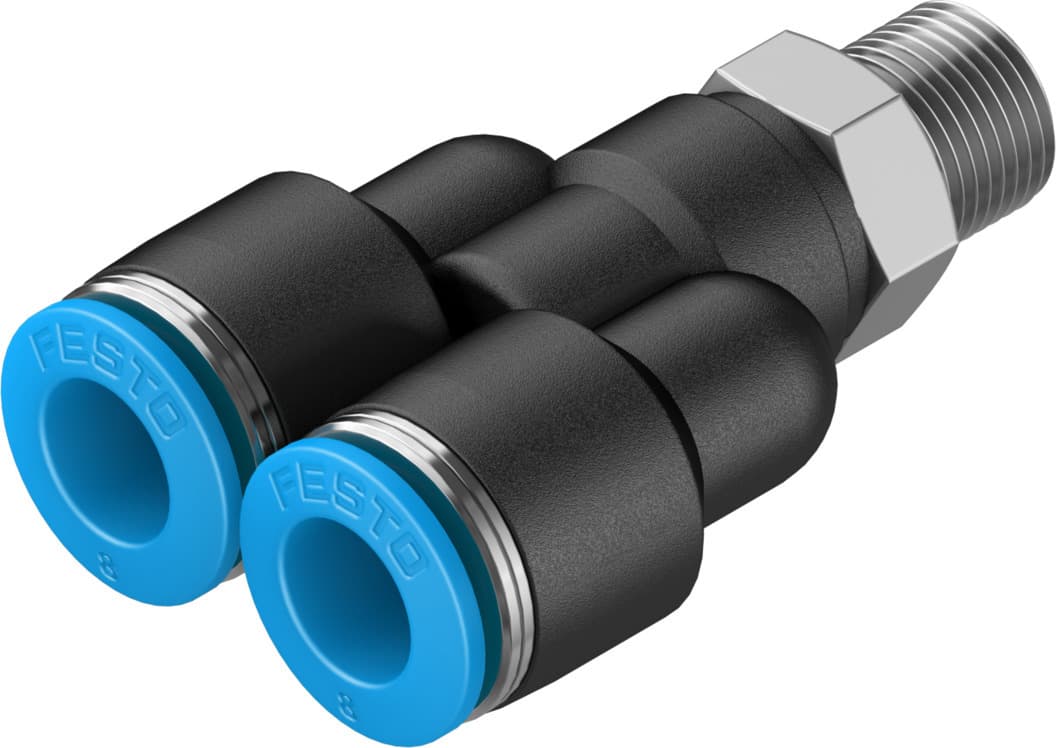

qsy-1/8-8
Product ID:2488
Updated: 2026/7/6
Key Features
- 1Install easily with a 360° orientable male thread and external hexagon.
- 2Resist corrosion (CRC 1) for use in low-stress environments.
- 3Handle versatile pressures from -0.95 to 6 bar.
- 4Ensure durability with PBT construction and a POM release ring.
- 5Connect quickly via push-in design to boost installation efficiency.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 5.9mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | Y-shape | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Nominal tightening torque | 7Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 20g |
| No. of outlets | 2 | No. of supply lines | 1 |
| Type of mounting | External hexagon, AF 12 | Pneumatic connection 1 | External thread R1/8 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
| Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153141 |
Specifications may be subject to change without notice
