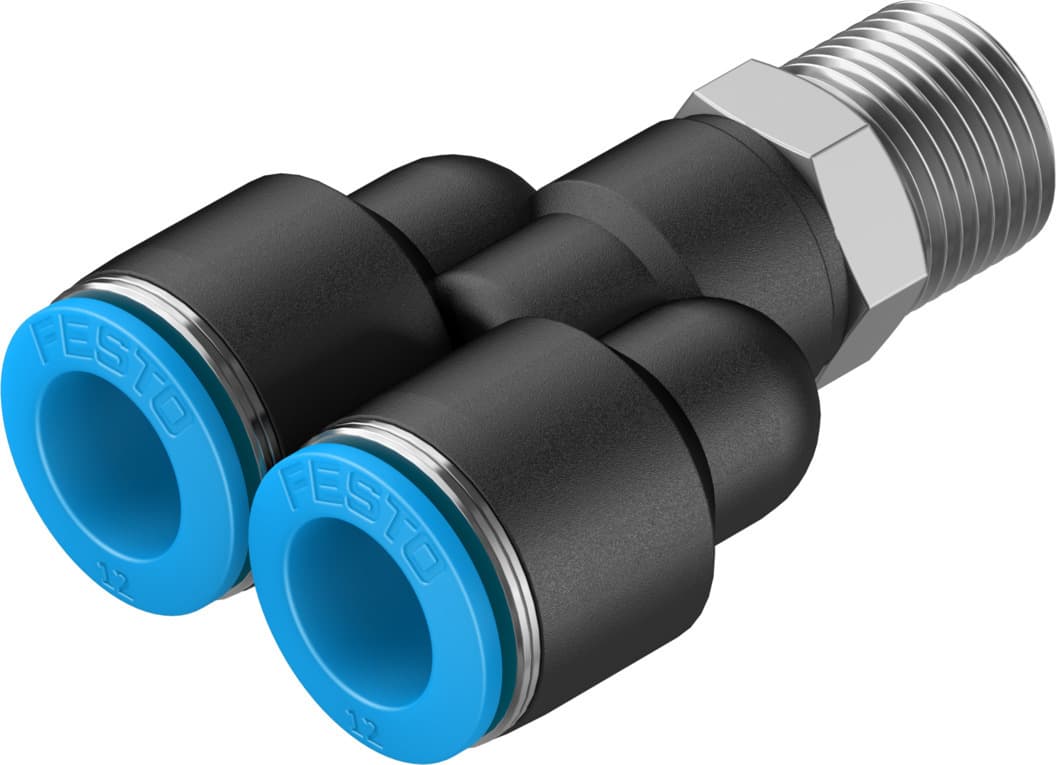

qsy-3/8-12
Product ID:2493
Updated: 2026/4/4
Key Features
- 1Achieve flexible 360° orientation for easy installation in any position. 2、Construct from durable PBT material for enhanced chemical and temperature resistance. 3、Connect standard 12 mm OD pneumatic tubing with the 8.4 mm nominal size. 4、Operate reliably within a wide temperature range from -10°C to 80°C. 5、Meet ISO 8573-1:2010 and VDMA 24364 standards for guaranteed compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 8.4mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | Y-shape | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Nominal tightening torque | 15.5Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 51g |
| No. of outlets | 2 | No. of supply lines | 1 |
| Type of mounting | External hexagon, AF 21 | Pneumatic connection 1 | External thread R3/8 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm | Releasing ring color | Blue |
| Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153146 |
