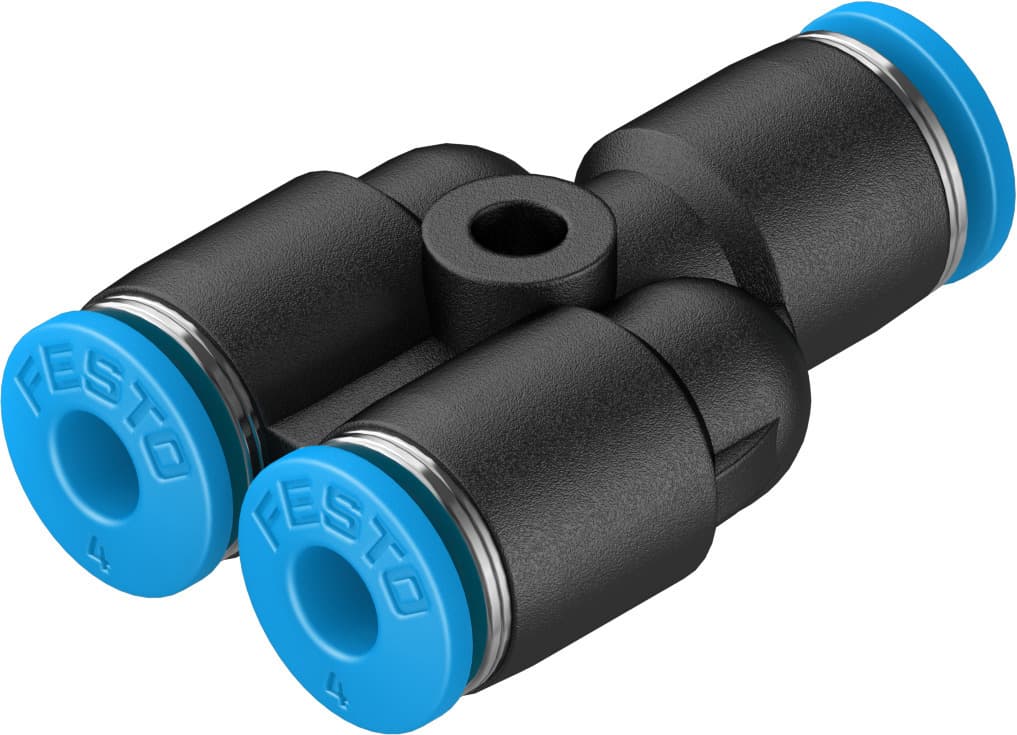

qsy-4-100
Product ID:1085
Updated: 2026/4/3
Key Features
- 1Constructed from high-alloy stainless steel, PBT, and NBR for superior durability and corrosion resistance. 2、Feature a Y-shape design with two outlets for versatile pneumatic system branching. 3、Utilize a push-pull principle for effortless, tool-free installation and reduced labor time. 4、Operate reliably within a -10°C to 80°C range and support pressures up to 14 bar. 5、Comply with ISO 8573-1:2010 and RoHS standards, ensuring international quality and safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 2.6mm |
| Mounting position | Any | Design | Y-shape |
| Pack size | 100 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 7.6g |
| No. of outlets | 2 | No. of supply lines | 1 |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130807 |
Specifications may be subject to change without notice
