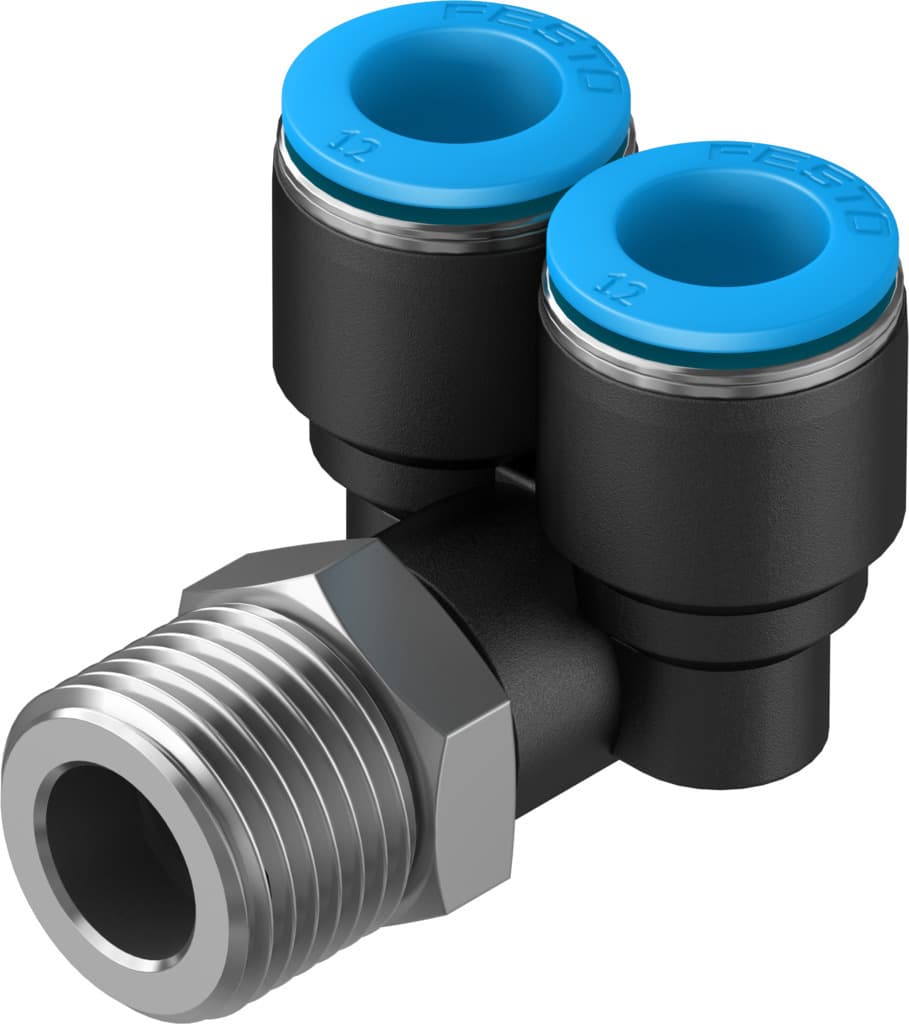

qsyl-1/8-1/4-u
Product ID:2809
Updated: 2026/4/3
Key Features
- 1Achieve 360° orientation for flexible installation. 2、Operate from -10°C to 60°C and -0.95 to 10 bar. 3、Ensure compatibility with ISO 8573-1 compressed air. 4、Resist corrosion with CRC 1 rating and meet LABS standards. 5、Utilize high-quality PBT, POM, NBR, and stainless steel.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 4.3mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | L-shape, dual, parallel | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
| Max. tightening torque | 8Nm | Product weight | 16g |
| No. of outlets | 2 | No. of supply lines | 1 |
| Type of mounting | External hexagon 7/16 | Pneumatic connection 1 | external thread 1/8 NPT |
| Pneumatic connection 2 | for pneumatic tubing outer diameter 1/4" | Ambient temperature Fahrenheit | 14°F 140°F |
| Releasing ring color | Gray | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153783 |
Specifications may be subject to change without notice
