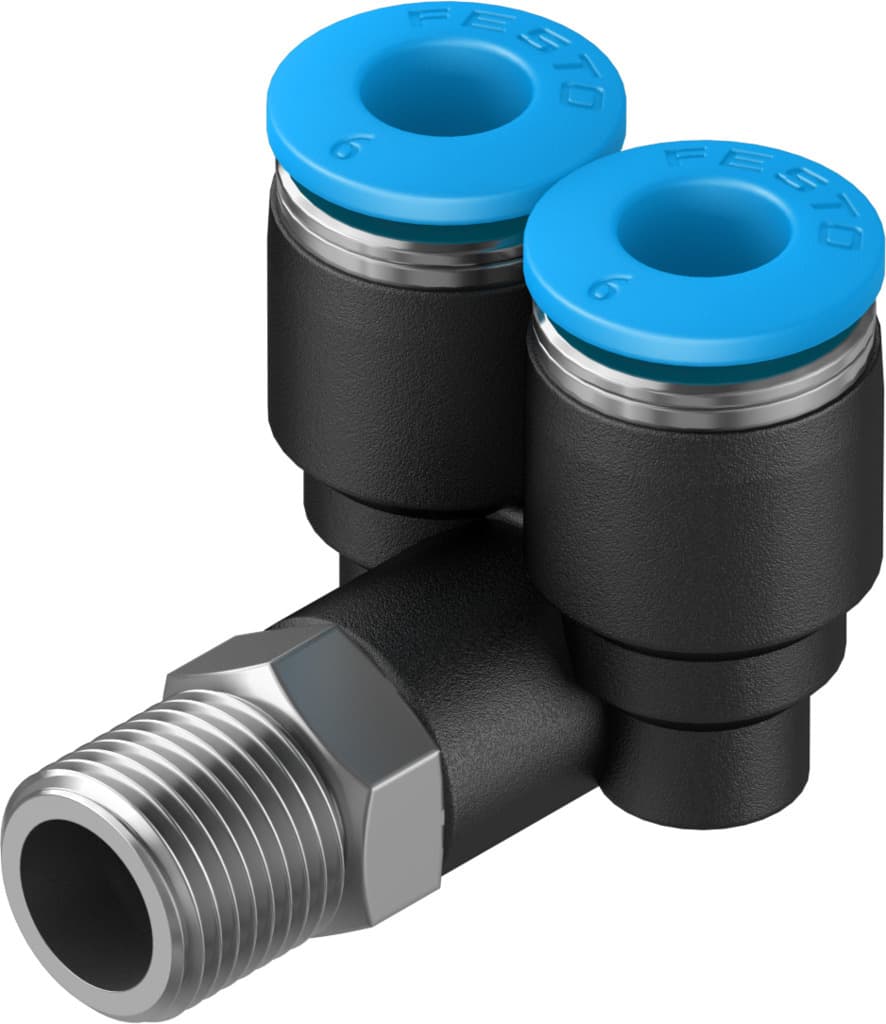

qsyl-1/8-6
Product ID:2519
Updated: 2026/4/4
Key Features
- 1Ensure reliable pneumatic connections with a 4.2 mm nominal size. 2、Operate within a wide -10°C to 80°C temperature range. 3、Construct durable housing from chemical-resistant PBT material. 4、Handle low corrosion stress with a CRC class 1 rating. 5、Facilitate easy 360° installation using the push-pull principle.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 4.2mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | L-shape, dual, parallel | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Nominal tightening torque | 7Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 15g |
| No. of outlets | 2 | No. of supply lines | 1 |
| Type of mounting | External hexagon, AF 10 | Pneumatic connection 1 | External thread R1/8 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
| Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153173 |
Specifications may be subject to change without notice
