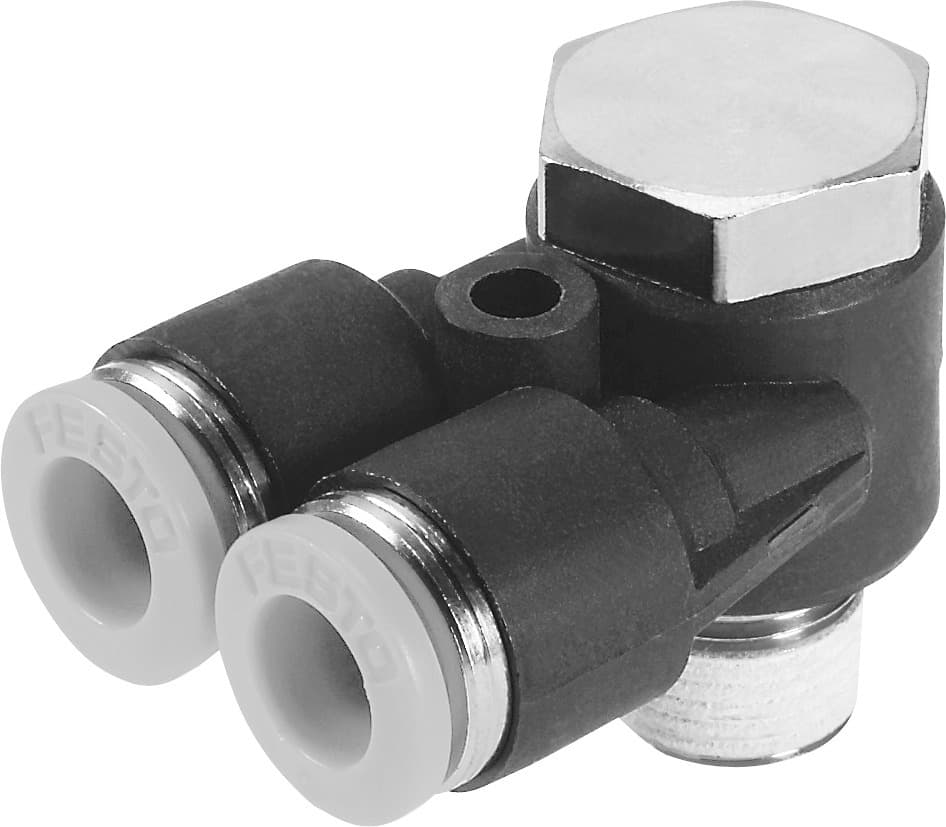

qsylv-1/8-3/16-u
Product ID:2813
Updated: 2026/4/3
Key Features
- 1Install easily with a 360° orientable design for flexible pneumatic layouts. 2、Ensure durability using PBT housing and NBR seal for high corrosion resistance. 3、Meet ISO 8573-1:2010 standards for reliable compressed air applications. 4、Simplify maintenance with a push-pull principle for quick assembly. 5、Operate reliably from -10°C to 60°C and -0.95 to 10 bar.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Type of seal on screwed plug | Coating |
| Mounting position | Any | Design | L-shape, dual, parallel |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. tightening torque | 8Nm |
| No. of outlets | 2 | No. of supply lines | 1 |
| Type of mounting | Hollow bolt with external hex | Pneumatic connection 1 | external thread 1/8 NPT |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 3/16" | Ambient temperature Fahrenheit | 14°F 140°F |
| Releasing ring color | Gray | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153794 |
Specifications may be subject to change without notice
