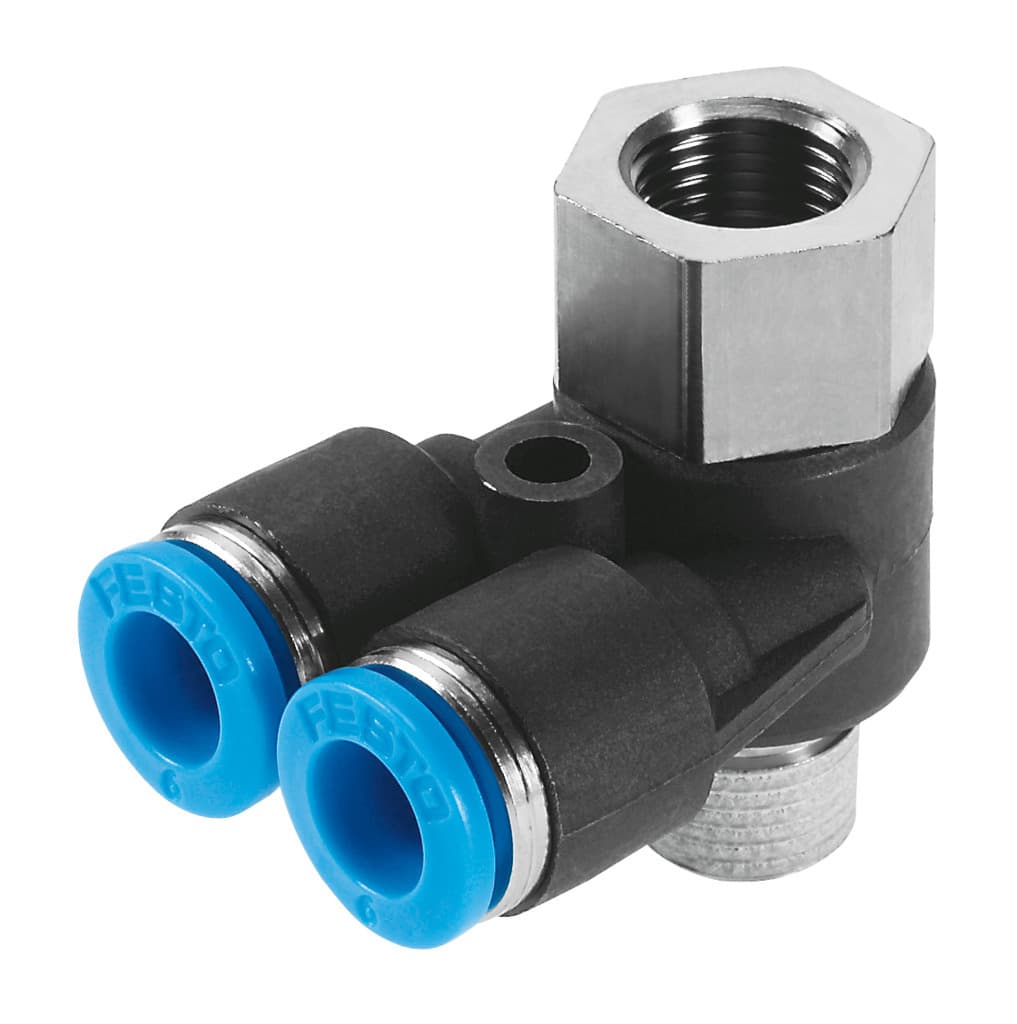

qsytf-3/8-10-b
Product ID:2544
Updated: 2026/7/6
Key Features
- 1Ensure secure connections with the push-pull principle.
- 2Connect hoses efficiently using R3/8 male and G3/8 female threads.
- 3Operate reliably in temperatures from -10°C to 80°C.
- 4Resist corrosion with PBT housing and NBR tube seal.
- 5Reduce system weight with a 72-gram, RoHS-compliant design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 5.5mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Structural design | Push-pull principle | Pack size | 1 |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 72g | No. of outlets | 3 |
| No. of supply lines | 1 | Pneumatic connection 1 | External thread R3/8 |
| Pneumatic connection 2 | Internal thread G3/8 for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 153198 |
Specifications may be subject to change without notice
