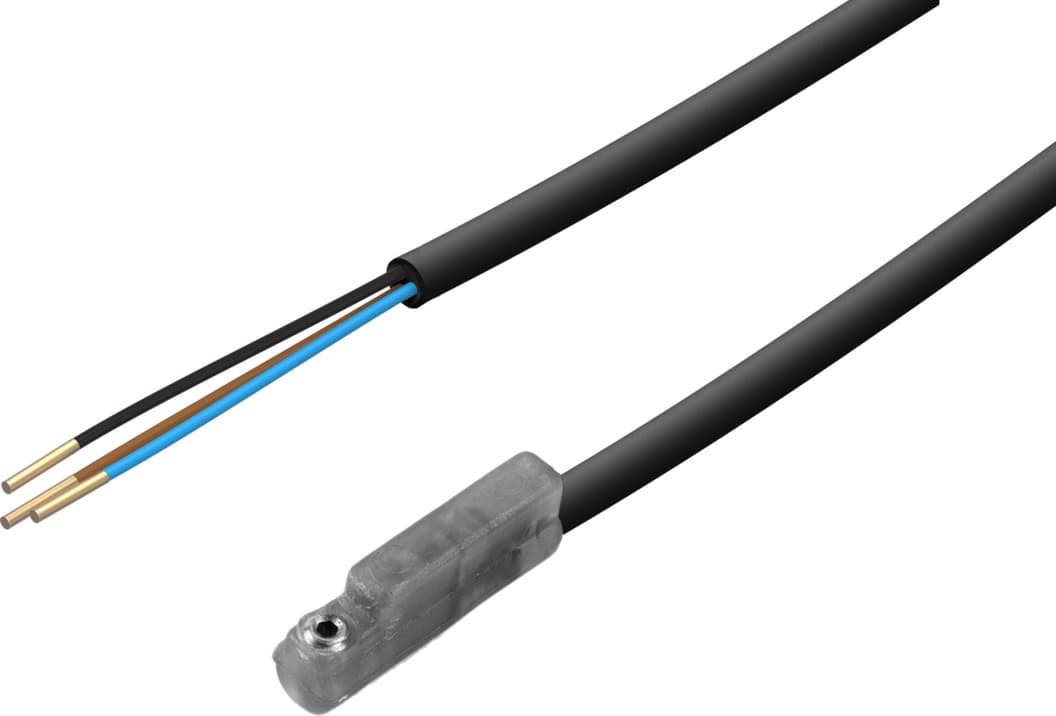

sdbf-fas-1l-pu-k-9-n-le
Product ID:16689
Updated: 2026/4/3
Key Features
- 1Ensure precise position measurement with magneto-resistive technology. 2、Operate reliably from -20 °C to 80 °C in diverse environments. 3、Integrate easily into round slots for various system designs. 4、Meet environmental standards using RoHS-compliant materials. 5、Achieve long-lasting performance with PVC cable and transparent housing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for round slot | Note on materials | RoHS-compliant |
| Measured variable | Position | Measuring principle | Magneto-resistive |
| Ambient temperature | -20°C 80°C | Switching output | PNP |
| Switching element function | N/O contact | On time | 0.004ms |
| Max. output current | 200mA | Max. switching capacity DC | 4.8W |
| Voltage drop | 1V | Short-circuit protection | yes |
| DC operating voltage range | 6V 24V | Reverse polarity protection | yes |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
| Color cable sheath | Black | Material of cable sheath | PVC |
| Type of mounting | Screwed tightly Can be inserted in slot lengthwise | Mounting position | Any |
| Housing colour | Transparent | Switching status indication | LED |
| Ambient temperature with flexible cable installation | -20°C 80°C | Degree of protection | NEMA 6 |
| LABS (PWIS) conformity | VDMA24364 zone III | Manufacturer ID | 8106571 |
Specifications may be subject to change without notice
