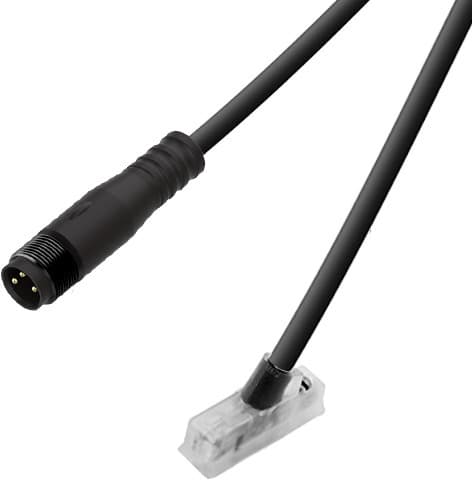

sdbf-fbs-1l-nu-k-0.5-n-m8
Product ID:16696
Updated: 2026/4/3
Key Features
- 1Achieve fast 4 µs switching for rapid response. 2、Ensure robust connections with an M8x1 A-coded connector. 3、Detect positions precisely via magneto-resistive principle. 4、Operate reliably from -4 °F to 176 °F. 5、Gain NEMA 6 protection for harsh environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for dovetail slot | Note on materials | RoHS-compliant |
| Measured variable | Position | Measuring principle | Magneto-resistive |
| Ambient temperature | -20°C 80°C | Switching output | NPN |
| Switching element function | N/O contact | On time | 0.004ms |
| Max. output current | 200mA | Max. switching capacity DC | 4.8W |
| Voltage drop | 1V | Short-circuit protection | yes |
| DC operating voltage range | 5V 28V | Reverse polarity protection | yes |
| Electrical connection 1, connection type | Cable with socket | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | 60° |
| Color cable sheath | Black | Material of cable sheath | PVC |
| Type of mounting | Screwed tightly Can be inserted in slot lengthwise | Mounting position | Any |
| Housing colour | Transparent | Switching status indication | LED |
| Ambient temperature with flexible cable installation | -20°C 80°C | Degree of protection | NEMA 6 |
| LABS (PWIS) conformity | VDMA24364 zone III | Manufacturer ID | 8106578 |
Specifications may be subject to change without notice
