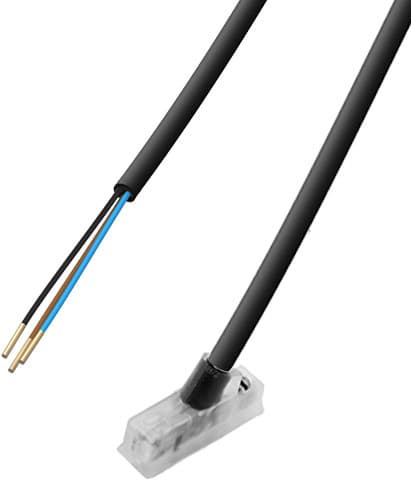

sdbf-fbs-1l-pu-k-9-n-le
Product ID:16693
Updated: 2026/7/19
Key Features
- 1Utilize magneto-resistive technology for accurate position measurement.
- 2Ensure environmental safety with full RoHS compliance.
- 3Simplify installation via the dedicated dovetail slot design.
- 4Operate reliably across a wide -20°C to 80°C temperature range.
- 5Monitor status easily with a clear LED switching indicator.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | for dovetail slot | Note on materials | RoHS-compliant |
| Measured variable | Position | Measuring principle | Magneto-resistive |
| Ambient temperature | -20°C 80°C | Switching output | PNP |
| Switching element function | N/O contact | On time | 0.004ms |
| Max. output current | 200mA | Max. switching capacity DC | 4.8W |
| Voltage drop | 1V | Short-circuit protection | yes |
| DC operating voltage range | 5V 28V | Reverse polarity protection | yes |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | 60° |
| Color cable sheath | Black | Material of cable sheath | PVC |
| Type of mounting | Screwed tightly Can be inserted in slot lengthwise | Mounting position | Any |
| Housing colour | Transparent | Switching status indication | LED |
| Ambient temperature with flexible cable installation | -20°C 80°C | Degree of protection | NEMA 6 |
| LABS (PWIS) conformity | VDMA24364 zone III | Manufacturer ID | 8106575 |
Specifications may be subject to change without notice
