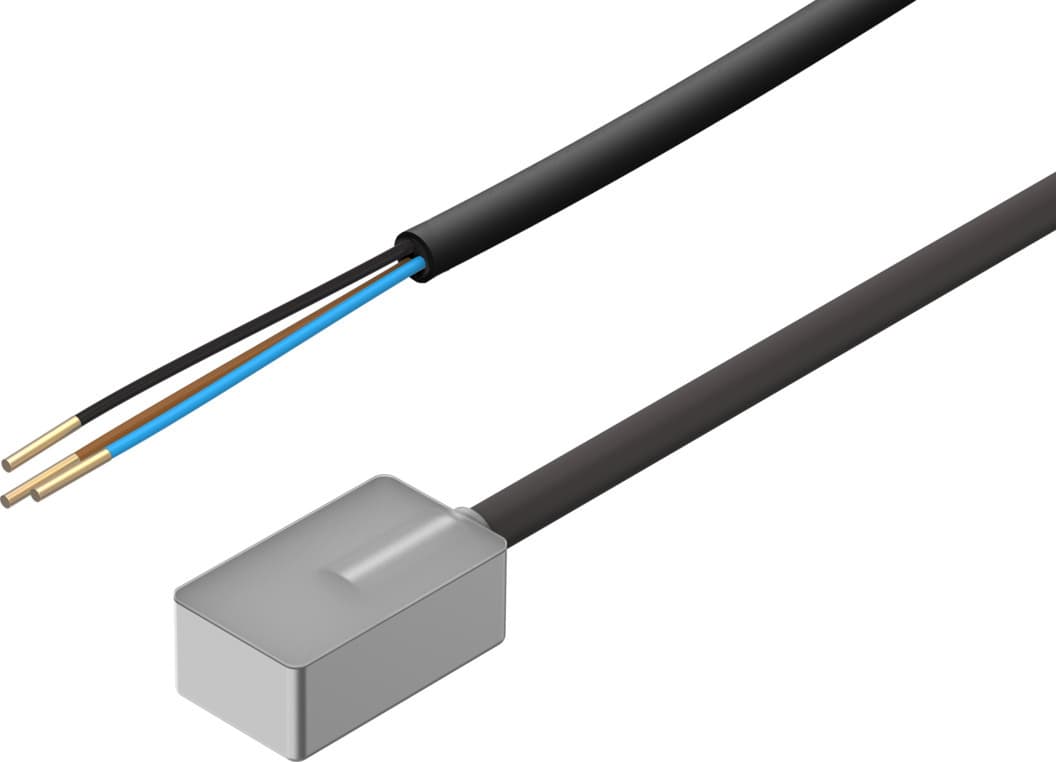

sdbf-fcs-1l-nu-k-9-n-le
Product ID:16808
Updated: 2026/6/20
Key Features
- 1Ensure precise detection with magneto-resistive measuring principle.
- 2Operate robustly in harsh environments with IP67/NEMA 4 rating.
- 3Install flexibly using various compatible mounting kits.
- 4Protect your system with short-circuit and reverse polarity protection.
- 5Integrate seamlessly via PNP output and LED status indication.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Block design | Note on materials | RoHS-compliant |
| Measured variable | Position | Measuring principle | Magneto-resistive |
| Ambient temperature | -20°C 80°C | Switching output | NPN |
| Switching element function | N/O contact | On time | 0.004ms |
| Max. output current | 500mA | Max. switching capacity DC | 12W |
| Voltage drop | 1V | Short-circuit protection | yes |
| DC operating voltage range | 6V 24V | Reverse polarity protection | yes |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
| Color cable sheath | Gray | Material of cable sheath | PVC |
| Type of mounting | With mounting kit | Mounting position | Any |
| Housing colour | Transparent | Housing material | PA |
| Switching status indication | LED | Ambient temperature with flexible cable installation | -20°C 80°C |
| Degree of protection | IP67 NEMA 4 | LABS (PWIS) conformity | VDMA24364 zone III |
| Manufacturer ID | 8117063 |
Specifications may be subject to change without notice
